Exemplar: |
SA-YZ2x80 |
Nomen: |
Hydraulic Tensioner |
Contentio: |
2X80kn |
Engine: |
Diesel |
Motor: |
BOSCH |

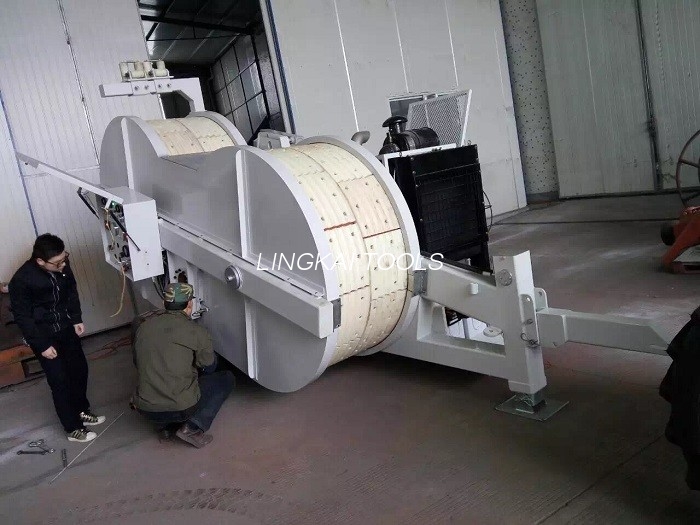

SA-YZ2x80 Duo Fasciculus Conductor Cable Tensioners For Stringing Overhead Line
Hoc SA-YZ2×70 / SA-YZ2×80 Tensioner Hydraulicum ordinatur cum fonte applicato hydraulically emissam multi-laminam fregit, quae per se laborare potest ad solvendam problema deliquium hydraulicum et melius operationem tutam curare. Accedit, productum nostrum cum duobus propositis potentiae hydraulicae outputa interfaciendi venit ad nexum conductoris hydraulicae reel standi.
Bulla tensionis hydraulicae nostrae in seg- menta eneis MC nylon probandi habet. Tensio in infinitum variabilis temperantiae ratio sinit productum nostrum ad cognoscendam constantem-tensionem chordarum.
Principalis Specifications
SA-YZ2x80 Duo Fasciculus Conductor Cable Tensioners For Stringing Overhead Line
| Item Number | 07198 | 07199 |
| Exemplar Number | SA-YZ2×70 | SA-YZ2×80 |
| Maximam Tensionem (kN) | 2×70 vel 1×140 | 2×80 vel 1×160 |
| Continua Tensio (kN) | 2×65 vel 1×130 | 2×75 vel 1×150 |
| Maxime Volo (km/h) | 5 | |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1700 | |
| Numerus Grooves | 2× 5 | |
| Maxime LAQUEUS (kN) | 2× 63 vel 1× 126 . | |
| Maxime Speedback (km/h) | 2× 1.6 | |
| Maxime Diameter Idonei Conductor (mm) | F45 | |
| Engine Power/Speed (kW/rpm) | 82.5/2500 | |
| Dimensiones (mm) | 5300× 2300× 2900 | |
| Pondus (kg) | 8500 | |
Principalis Components
SA-YZ2x80 Duo Fasciculus Conductor Cable Tensioners For Stringing Overhead Line
| Engine | Deutz engine pellentesque tristique |
| Pelagus Pump / Motor | Rexroth (BOSCH) |
| Pelagus HYDRAULICUS VALVAE | Rexroth (BOSCH) |
| reducer | RR (Italian) |
| Radiator | AKG |
| Hydraulic Instrument | LINGUA |
