Typus: |
Pulley For Conductor |
Nomen: |
Aluminium Conductor Blocks |
Exemplar: |
SHD |
Applicationem: |
Construction Works |
Rota Location :: |
120~1040mm |
Rota Number: |
1~5 |

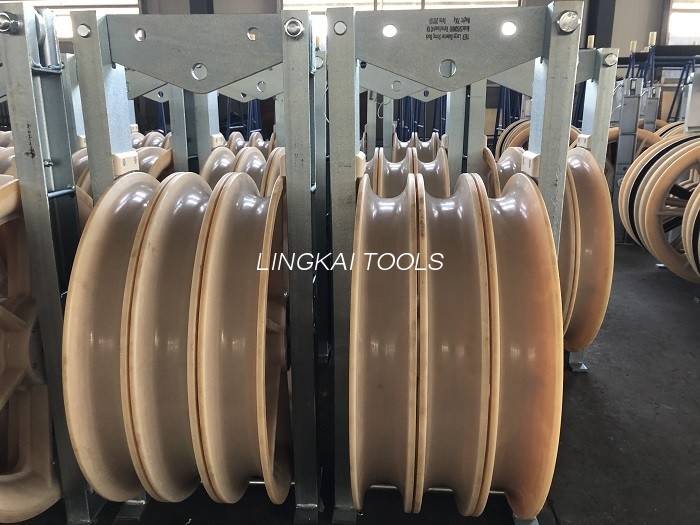

Aluminium Conductor Stringing Bundled Single Rota Aluminium Conductor
1.Wheel Size: 120~ 1040mm
2.Wheel Material: Nylon / aluminium
3.Wheel numerus: 1~5
4.Galvanized Ferro Frame
Aluminium trochleae
Cable Pulley
chordae caudices habent diametrum diversum adhibiti conductores chordarum diversorum.
Magnae nostrae diametri chordae caudices sunt Excelsi roboris et flexibilitas, facilis ad utendum, leve pondus, et longum servitium.
Productum: stringing trocleae caudices; chorda, caudices.
Usu: Tutela funem et conductorem a frictionibus cum imponunt. Tempus et labor servare possunt.
Descriptio:
a. Multum exemplaria ad diversos usus in linea transmissionis constructionis supra caput fabricamus.
b. Ductores ad sustentationem, OPGW, ADSS, communicatio linearum adhibita sunt.
c. Manipulus trocleae caudices fiunt ex viribus altis MC nylon, vel aluminium materiae, et compages caudices fiunt ex chalybe galvanizato. Laterales globuli gestus ascenduntur.
Notat: Omnia genera cuneos trochleae fabricari possunt secundum postulata clientium.
Si quis cuius interest, placet liberum contactus nos cum pluribus informationibus habere, et operam dabimus tuis requisitis obtemperare
| Model |
Rota magnitudine Diametri x Latitudo (mm) |
Mole conductor (mm2) |
rated onus (kN) |
Pondus (kg) |
Rota materialis |
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | aluminium |
| SHD-160X40 | 160X40 | 95~ 120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~ 120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | aluminium |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
