Nomen: |
Hydraulic Puncher |
Exemplar: |
CH60 |
Punching Force: |
30T |
Faucibus diam: |
95mm |
Applicare: |
Ferrum et Cuprum pulsare |
Formae: |
4 Sets |

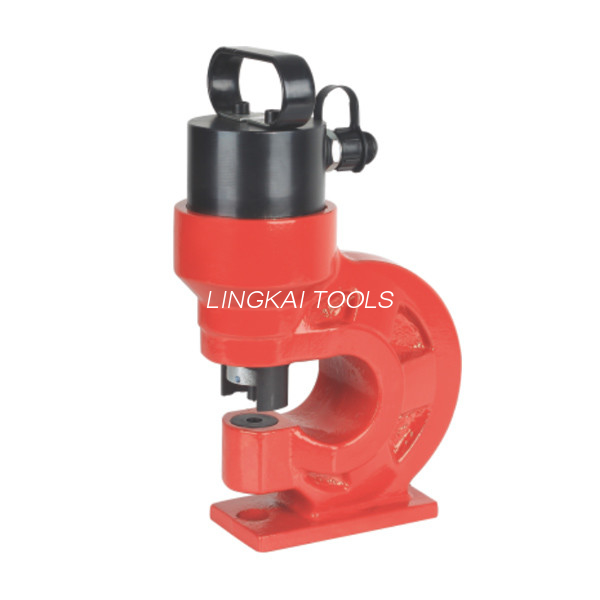

Output 30 Ton CH-60 Hydraulic Puncher Hole Punching Tool Hydarulic Tools
Instrumenta Introduction
Hydraulica Punching Tools CH-60 instrumentum ditionis est remotum, cum externa sentina hydraulica operatur (Pedes vel sentinam Electricam). Cu/Al Busbar ferrum rotundum perforatum destinatur. Cum 4 jugis vexillum pungendi perit (10.5 / 13.8 / 17 / 20.5mm), magnitudo perforati pulsandi inter diametrum 10.5mm et diametrum 20.5mm. Crassitudo busbari infra vel 8mm aequivalens. Cum potentia hydraulica, 4 jugis acre pulsandi perit, facile jejunium et purum pulsare potest.
Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60
|
Item numerus |
Model |
(KN) Punching vi |
(MM) Punching crassitudine |
(MM) faucium diametri |
(MM) Altitudo |
(KG) Pondus |
(MM) speciem matching fingunt |
hydrau sentinam |
| 06243 | CH-60 |
300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5, Φ13.8; Φ17, Φ20.5 |
CP-700/ ZCB6-5-A3 |
| 06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5, Φ13.8; Φ17, Φ20.5 |
CP-700/ ZCB6-5-A3 |
| 06248 | CH-80 |
500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16, Φ18; Φ22, Φ25 |
ZCB6-5-AB |
| 06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25, Φ28; Φ32, Φ36 |
ZCB6-5-AB |
Expone: Forma formae nativus potest esse secundum exigentias utentis
