Exemplar: |
SYK-8A |
Punchingforce: |
10T |
Punching dolor: |
16-51mm |
Stipare: |
Plastic Box |
Nomen: |
Hydarulic Opner |
Max Of Plate: |
3.5mm Mitis Steel |

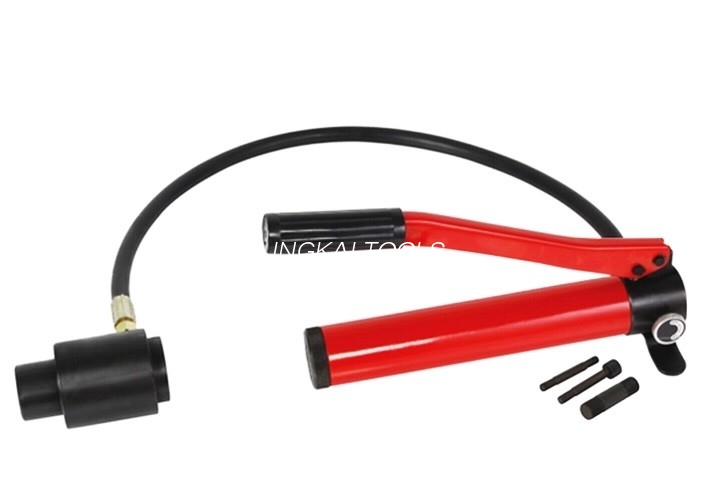

Exemplar SYK-VIII HYDRAULICUS Punch Coegi enim Punching Mitis Steel Max 3.5 mm Crassitudo Tab
SYK-VIII Model HYDRAULICUS Driver 100KN Veniet 25mm pro mitis Steel
Hydraulica apertura perforator hydraulica;
Usus ad tabulam cistae switch et cetera, superficies pingendi post perforationem non laedetur.
Explica: forma magnitudinis nativus potest secundum exigentias utentis.
|
Item numerus |
06241A | 06241 | 06241B |
|
Modus |
SYK-8A |
SYK-8B | SYK-15 |
|
Punching range |
Φ16mm- Φ51mm | Φ22mm- Φ60mm | Φ63mm- Φ114mm |
|
Max crassitudine laminae |
3.5mm mitis ferro |
3.5mm mitis ferro | 3.5mm mitis ferro |
|
pulsare vis |
100KN | 100KN | 150KN |
|
Plaga |
25mm | 25mm | 25mm |
|
Pondus |
approx.N.W5.6KG G.W9.25KG |
approx.N.W5.6KG G.W9.5KG |
approx.N.W16KG G.W20KG |
|
sarcina |
plastic arca | plastic arca | ferro casus |
|
Per genus perit |
Φ16mm,Φ20mm, Φ26.2mm,Φ35.2mm, Φ39mm, Φ51mm |
Φ22mm, Φ27.5mm, Φ34mm, Φ43mm, Φ49mm, Φ60mm |
Φ63mm, Φ76mm, Φ90mm, Φ101mm, Φ114mm |
