Exemplar: |
QY 200. 300, 125 |
Maximilianus. Cogo Force (KN); |
200T, 300T 125T |
Maximilianus. Hydraulic Pressura (MPa): |
94 |
Maximilianus. ACSR Size (mm²); |
2500 |

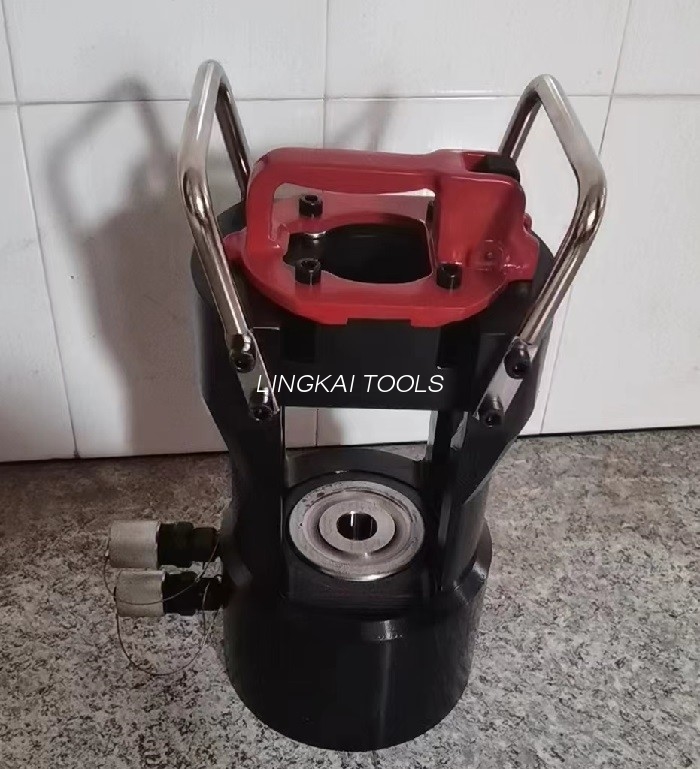

Machina Press Hydraulica cum antliae motorised hydraulica adhibetur pro ACSR conductor iuncturae transmissionis lineae supra caput stringentis.
Hydraulic Compressors pro Articulis Conductor
| Item No. | Model | Maximilianus. Cogo Force (KN) | Maximilianus. Hydraulica Pressura (MPa) | Maximilianus. ACSR Size (mm²) | Plaga (mm) | Pondus (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
Applicatio: Caput compressoris hydraulicum adhibetur cum sentinam hydrau- lica motorised ad compressionem iuncturam conductoris vel iuncturam filum terrestre. Viribus ex alto projicitur ferro.
Nota:
Princeps Pressura HYDRAULICUS Statio Pump (Model: YBG-94WQ)
| Item No. | Descriptio | Hydraulica Pressura (MPa) | Oleum flow (L/min) | Potentia (KW) | Pondus (kg) |
| 16146 | Gasoline motor pulsus hydrau stationem sentinam insidentes manu plaustri | 75 | 1.5 | 4.41 | 68 |
Nota: Stationes sentinae tantum agunt ut fontes potentiae pro compressoribus hydraulicis vel aliis instrumentis.
Motor gasoline HONDA GX160 est.
Longitudo mensurae hydrau- Hose est 3 metrorum. Hose diutius libitum est.
Compressione Hexagon Die sets
| Item No. | Compressor Compressor | Specification of Hexagonal Die Set (Diameter exterioris compressionis terminalis, L pro compressionis aluminii terminalis, G pro ferro terminalis) |
| 16121 | QY-25 | Aeris vel Aluminium Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50mm G -12, 14, 16, 18, 20, 22, 24, 26mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60mm G -12, 14, 16, 18, 20, 22, 24, 26mm |
| 16125 | QY-200 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm. G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32mm |
| 16126 | QY-300 | L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 ., 95,100mm G -16, 18, 20, 22, 24, 26, 28, 30, 32;;mm |
Nota: Hexagonal Die occidere potuit secundum exigentiam emptoris.
