Descriptio: |
Conductor Compressor |
Cogo Force: |
Maximilianus. 300 Tons |
Hydraulica Pressura: |
Maximilianus. 94 MPa |
Typus: |
Motorised Hydraulic |
Diameter Conductor Articulus: |
Maximilianus. 120 Mm |
Plaga Compressoris: |
Max 40mm |

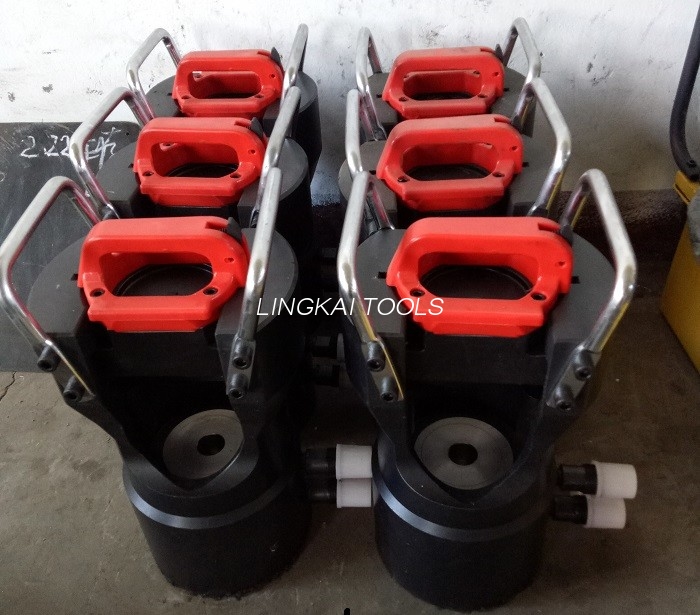

Apparatus hydraulicus Compressor pro conductore iunctionis supra caput transmisson linea adhibetur. Copia includunt compressorem Hydraulicum, sentinam motorisatam hydraulicam, et mori ponit secundum iuncturam diversam conductoris.
Hydraulic Compressors pro Articulis Conductor
| Item No. | Model | Maximilianus. Cogo Force (KN) | Maximilianus. Hydraulica Pressura (MPa) | Maximilianus. ACSR Size (mm²) | Plaga (mm) | Pondus (kg) |
| 16101 | QY-25 | 250 | 60 | 240 | 22 | 6 |
| 16102 | QY-35 | 350 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106 | QY-250 | 2500 | 94 | 2500 | 35 | 126 |
Applicatio: Caput compressoris hydraulicum adhibetur cum sentinam hydrau- lica motorised ad compressionem iuncturam conductoris vel iuncturam filum terrestre. Viribus ex alto projicitur ferro.
Nota:
- QY-XXV, QY-35 operabatur per manum vel sentinam potentiae electricae; QY-65, QY-125, QY-200 operatum est per stationem sentinam hydraulicam motorized cum magna pressura.
- Quaeso referri Item No.16141-16153 pro statio sentinae hydraulicae; Item N. 16161-16163 pro manibus soleatus operati sunt.
— Supple com- pressio alea occidit. (Vide Item No. 16121-16126 et 16131-16134 pro moritur).
Motorised HYDRAULICUS Pump Statio ad QY-125 (Model: YBG-94WQ)
| Item No. | Descriptio | Maximilianus. Hydraulica Pressura (MPa) | Oleum flow (L/min) | Potentia (KW) | Pondus (kg) |
| 16146 | Gasoline motor pulsus hydrau stationem sentinam insidentes manu plaustri | 75 | 1.5 | 4.1 | 68 |
Nota: Stationes sentinae tantum agunt ut fontes potentiae pro compressoribus hydraulicis vel aliis instrumentis.
Gasoline motricium est Honda importari ex Iaponia
Compressione Hexagon Die sets
| Item No. | Compressor Compressor | Specification of Hexagonal Die Set (Diameter exterioris compressionis terminalis, L pro compressionis aluminii terminalis, G pro ferro terminalis) |
| 16121 | QY-25 | Aeris vel Aluminium Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm. G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-250 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80, 95, 100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Nota: Hexagonal Die occidere potuit secundum exigentiam emptoris.
shipment
1. Instrumenta et instrumenta in vase aut aere portabuntur.
2. Nos mos products intra 10days traba Northmanni post acceptam mercedem.
3. Stock is available for standard product.
