Exemplar: |
HT-400 |
Crimping Force: |
120KN |
Crimping dolor: |
16-400mm2 |
Crimping Type: |
Hexa |
Plaga: |
32mm |
Longitudo; |
552mm |

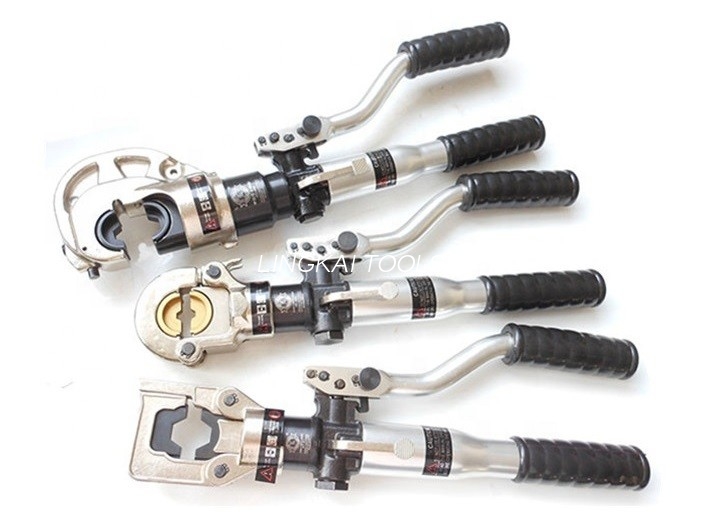

HT-400 Integral Hydraulica Crimping forcipes Cable Lug Crimping Instrumenta pro 16-400 mm2 Crimping
HYDRAULICUS Crimping Tools Type Cupper Tube Crimper Tool
|
Item numerus |
16210 | 16210A |
|
Model |
HT-300 | HT-400 |
|
Crimping vi |
60KN | 120KN |
|
Crimping range |
16-300mm² | 16-400mm² |
| Crimping type |
hexagonum crimping |
hexagonum crimping |
|
Dies |
50 16,25,35,50,70,95,120; 150,185,240,300mm² |
50,70,95,120,150; 185,240,300,400mm² |
|
Plaga |
17mm | 32mm |
|
Longitudo |
approx.460mm | approx.552mm |
|
(KG) Pondus |
approx.N.W3.7KG G.W7.1KG |
approx.N.W6.8KG G.W10.2KG |
|
sarcina |
aluminium offensionis arca | aluminium offensionis arca |
Hydraulica manus crimper / cable lug instrumenta crimping / filum crimper
Characteres
1. Compressio formse reparari potest, operatio velox et tuta;
2. Compressionis figuratio: 50,70,95,120,150,185,240,300,400mm2
3. Instrumenta actorum apta ad DIN.AWG.JIS.
4. Tutus est armorum tutela vocis Kacha cum ad altam vel ad humilem intentionem pertingit.
5. Operari potest una persona, tempus servat et laborem.
6. Pump instrumentis iungitur, 180 gradum vertere potest cum in capite premitur.
