High Efficiency Hydraulic Crimping Tool Busbar Processing With 200V 50HZ Voltage

High quality High Efficiency Hydraulic Crimping Instrumentum Busbar Processing Cum 200V 50HZ Voltage ex Sinis, ducens instrumentum hydraulicum crimping funibus electrica producti, cum stricta qualitate temperantiae filum hydraulicum instrumentum officinarum crimping, producens quale filum hydraulicum instrumentum crimping producta.

Mitte Inquisitionem

depictio producti

Moritur:	Lorem aut batch Latin	Nomen:	Multi-munus Bus Bar
Vis tendentes:	170K/200KN	Vis secans:	200/300KN	Punching Force:	300/35KN	Voltage:	220V 50HZ

Muti-munus Busbar Processus Triad Busbar Processing Machina Punching, Secans, Flexo

70Mpa Hydraulic Busbar Processing Machina for Punching, Secans and bending EPCB-301

Exemplar EPCB-301 ponit:

Hydraulica pulsandi fabrica: CH60, CH70, 300KN et 350KN moriuntur 10.5mm, 13.8mm,17mm,20.5mm

HYDARULIC BUS-BENDAE: CB150D, CB200A, habet Cu/Al laminam 150*10mm, et 200*12mm.

Aluminium aeris hydraulicum dromonis bus-vectium, habet CWC150, CWC200, cum 200KN et 300KN vim secantis, CU/Al 150*10mm, et 200*12mm.

Sentini HYDRAULICI electricae: ZCB6-5-AB, 750KW e put, 70Mpa.

Multi-munus Busbar Processing Machine

Hic processus aptus est ad magnas electricos arcae faciendas, potestates repositoria distributio, switch repositoria et potentia tradendi ac distribuendi constructionis machinalis constructionis usus.

Item numerus	06232	06231A	06231
Model	EPCB-301	EPCB-401A	EPCB-401
Munus	cum tribus functionibus incisis; pulsandi inflexio	pulsare inflexio crimping	cum quattuor functionibus incisis; pulsandi inflexio (horizontalis et erective)
Dimensio opus mensam	approx.690x690x730mm	approx.690x690x730mm	approx.690x690x730mm
Voltage una tempus	220V50HZ	220V50HZ	220V50HZ
Rating oleum pressura	700kg/cm2	700kg/cm2	700kg/cm 2
vis tendentes	170KN/200KN	170KN/200KN	270KN
range tendentes	150x10mm max/200x12mm max	150x10mm max/200x12mm max	125x12.5mm max
Secans vis	200KN/300KN	200KN/300KN	200KN/300KN
Secans insonuit	150x10mm max/200x12mm max	150x10mm max/200x12mm max	150x10mm max/200x12mm max
Pulsandi vis	300KN/350KN	300KN/350KN	300KN/350KN
Procul ab foraminis ad sheet latus	95x110mm max	95x110mm max	95x110mm
Punch sonuit	φ10.5mmφ13.8mm φ17mmΦ20.5mm	φ10.5mmφ13.8mm φ17mmΦ20.5mm	3/8"(Φ10.5mm), 1/2"(φ13.8mm); 5/8"(φ17mm),3/4"(φ20.5mm)
sarcina	lignea causa	lignea causa	lignea causa

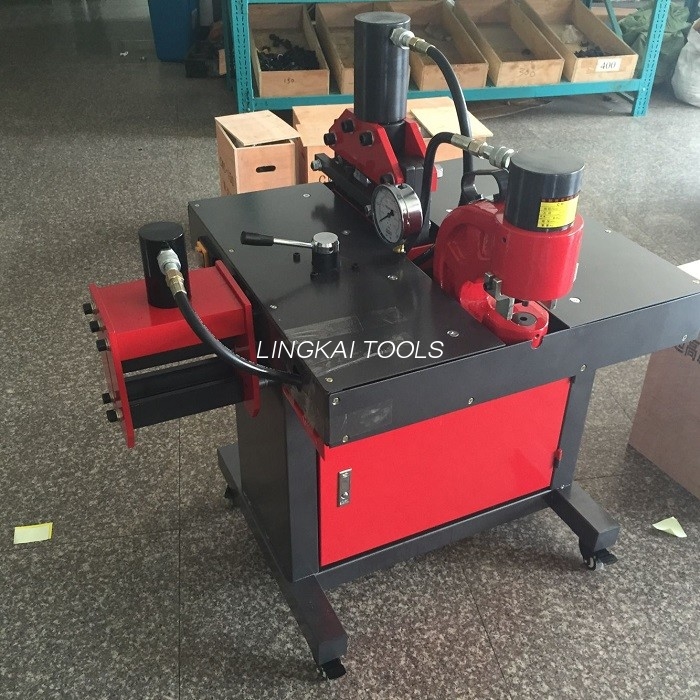

High Efficiency Hydraulic Crimping Tool Busbar Processing With 200V 50HZ Voltage 1

Hot Tags: hydraulicum instrumentum crimping pro funibus electrica, filum hydraulicum instrumentum crimping, instrumentum hydraulicum Crimping
