Nomen: |
Gas Powered Winch |
Pluma: |
Maximum efficiens |
Vis trahens: |
5 Ton |
Engine: |
Honda |
Applicare: |
Funis trahens Winch filum |
Site: |
Potentia Construction |

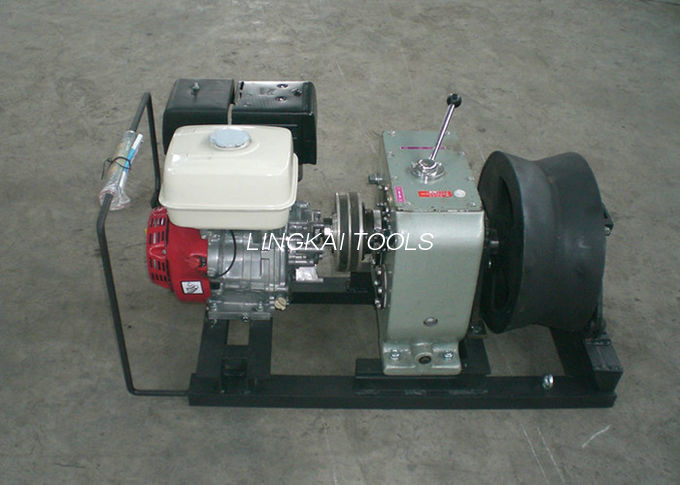

High Efficiency 5 Ton HONDA Wire Rope Gas Powered Winch in Power Construciton
Applicationem
High Efficiency 5 Ton Gas Powerd Winch maxime usus est ad erigendas lineas transmissiones altas voltages et impositio cables subterranei, machina gasolina cum autocineto automati fibulae fracto et capio transmissionis catenam frangens duo quaedam machinae brakinge, in contrariam partem positivae; braking actio.
Gasoline Winch mutari potest per postulationem, ut capstans curvae mutans in figuram rectam vel cylindricam et cum fune ferreo veniens.
Features
I) celer et efficiens
II) Tutus et PRAEIUDICATUS
III) Foedus compages
IV) late
V) leve pondus
Technical Data
| Exemplar | Specification | Apparatus | Linea excute | Velocitate trahens | |
| KN | m/min | ||||
| JJM-5B(Q) | Altiore Size:1200*600* 750mm | Deinceps | I | 50 | 5 |
| II | 30 | 9 | |||
| Pondus: 180kg | III | 15 | 14 | ||
| IV | 9 | 24 | |||
| Transmissio: Shaft Driven | Reverse | I | - | 5 | |
| II | - | 9 | |||
| Engine:HONDA gasoline engine GX360 13HP | III | - | 14 | ||
| IV | - | 24 | |||
