Exemplar: |
SHDN508 |
Sheave: |
3 |
Ratum Lond: |
40KN |
Nomen: |
String obstruit |
Materia: |
MC Nylon Sheave |
Nequaquam: |
10102 |

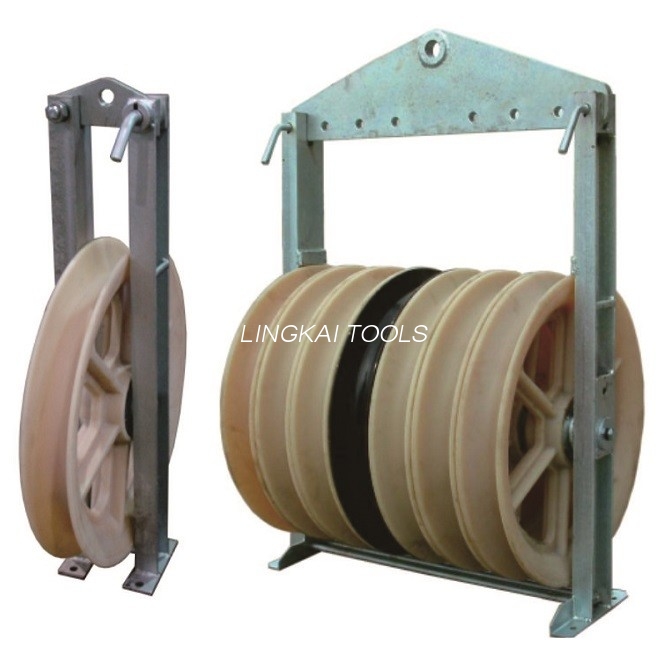

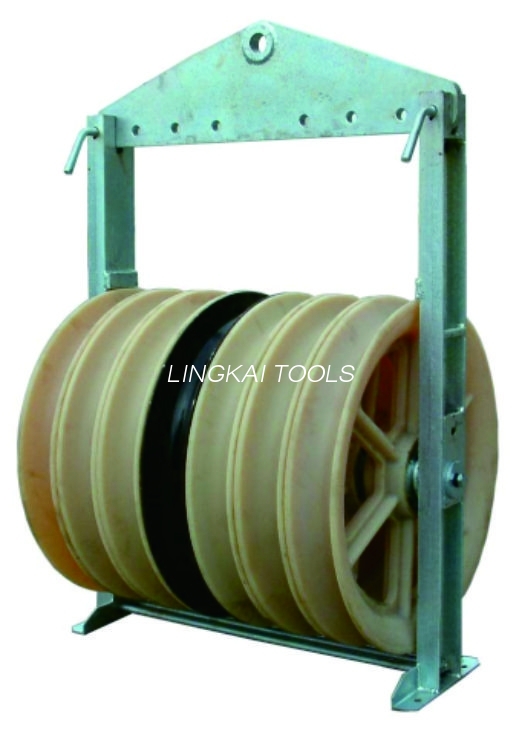

508mm Twin Bundled Conductor Purgamentum Lineed MC Nylon Wwheel Transmission Stringing Block
508 mm caudices chordae
508 mm caudices chordarum normaliter adhibitae ad conductorem mediae magnitudinis 17—25 mm chordarum) in linea transmissionis supra caput constructionis. Series harum chordarum designavimus pro uno conductore, 2 conductore fasciculo, et 4 conductori chordarum fasciculo. 1.Maximum conductor idoneus ACSR400.Configuration: 2.Sheave dimensio (extra diameter× root of diametri invehere latitudinem) Φ508×Φ408×75 (mm) 3.Sheave dimensio Φ508×Φ408×100 (mm) nativus esse potest.
| Item numerus | Model | Numerus manipulorum | Rated onus (kN) | Pondus (kg) |
Features |
| 10101 | SHD508 | 1 | 20 | 18 | Purgamentum instructa aluminium fasciculum |
| 10102 | SHS508 | 3 | 40 | 61 |
Medius: Iacta ferro fasciculum Conductor : Purgamentum instructum aluminium fasciculum |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/1004A | SHDN508 | 1 | 20 | 16 | MC nylon fasciculum |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Medius : MC nylon fasciculum Conductor : Purgamentum instructum aluminium fasciculum |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon fasciculum |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
