Exemplar: |
EP510 |
Crimping Force: |
13T |
Crimping dolor: |
16-400mm2 |
Moritur: |
50-400mm2 |
Capacitas olei: |
200cc |
Longitudo; |
780mm |

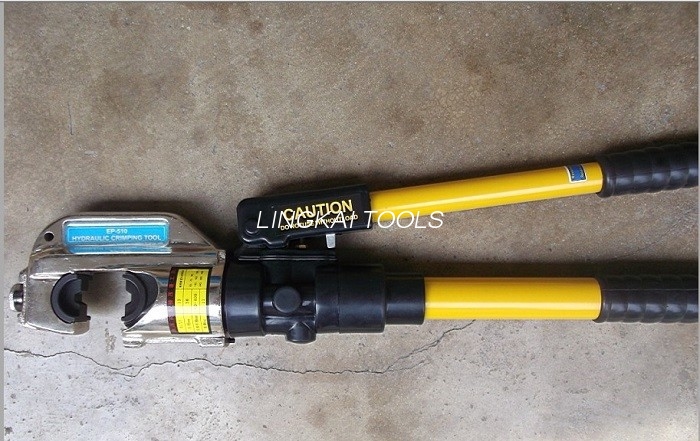

EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool with 130KN Crimping Force
Hydraulic Cable Lug Crimping Mors Principium Salutis Valvae Crimping Terminal 16-400sqmm
|
Item numerus |
16199 | 16200 |
|
Model |
EP-430 | EP-510 |
|
Crimping vi |
120KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² |
| Crimping type |
hexagonum crimping |
hexagonum crimping |
|
Dies |
50,70,95,120,150; 185,240,400mm² |
50,70,95,120,150; 185,240,400mm² |
|
Plaga |
32mm | 38mm |
|
(CC) Facultatem oleum |
145cc | 200cc |
|
Longitudo |
approx.770mm | approx.780mm |
|
(KG) Pondus |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
|
sarcina |
plastic arca | plastic arca |
Applicationem
Exemplar EP-510 Handheld/Manuale Hydraulicum Press Crimping Instrumentum ad aes et aluminium compressionem terminales adhibetur. Forma compressionis restitui potest et faciles operationes. Instrumenta pressa apta DIN,AWG,JIS. Est tutior fabrica "Kacha "Vox cum attingit ad alta intentione vel submissa intentione. Potest adhiberi ad operandum in superiori gradu ab uno homine. Tempus et labor servat. moriuntur iacientes possunt verti 180 gradus.
HYDRAULICUS Crimping Tools Type Cupper Tube Crimper Tool
1. Crimping range est 16-400mm2
2. Die set, 50.70,95,120,150,185,240,400mm2
3. 200cc facultatem oleum
4. 38 mm plaga, cum 130Kn vi criming
1. Designa ad sexangulas accommodare, decedit instrumentorum hydrauicorum ad struendas etiam cupreas, aluminium conductores applicandas.
2. Duae scaenae crepitant actiones pro ariete celeri progresso ad iungo locum tenent cum actione minimum flare.
3. Automatic retractatio cum pressio instrumentorum crimperorum ad 700kg/cm2 pervenit.
4. Fibra vitrea operatio insulet lignum, crimping instrumentum electricum voltage 200KV ferre potest, minutum servans.
5. Instrumenta hydraulica cum 180 gradu capite rotabili.
6. Pressio instrumentorum hydraulicorum extra corpus aptat ad valvae instare.
