Exemplar: |
ATW9mm, 11mm, 16mm, 18mm, 22mm |
Descriptio: |
Anti Twisting Steel Wire Rope |
Constructio Strand: |
1 X 19W Aut 1X25T, 1X29T |
Syntaxis: |
Single Conductor Or OPGW |
Onus fractionis: |
462kn |
Gradus Steel filum: |
1960, 2060 N/MM2 |
Lubricatio: |
Libitum |
Numerus Strands: |
12 |
12 Strands Anti- tortis Ferro filum tortis funis normaliter adhibitum est ad constringendum caput conductoris vel fibra optica in electricis lineis potentiae.
Anti tortis Ferro filum tortis funis praecipue e filo ferri filo galvanizato plectitur, et plerumque ad caput potentiae lineae chordae et operationis tendentis adhibita est. Funis altae virium multum commoda habet: flexibilitas alta, stabilitas gyrationis integra, distributio pressionis homogenea inter fila elementaria. Augetur efficacia in operationibus chordis. Ita funis semper usus est ut funis gubernator filum vel funem trahens pro potentia recta constructione

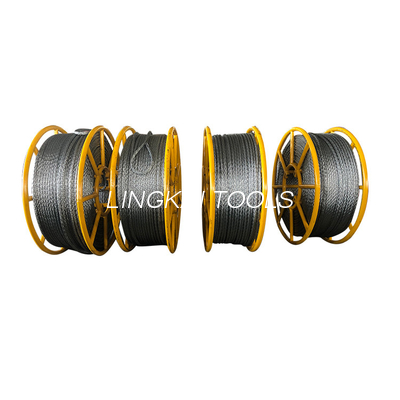

12 Strands Anti filum chalybe tortis tortis funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 1820A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.7mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 313 KN | 4.8 mm | 1960 | 1500 | |
| 18213A | 24 mm | 342 KN | 5.0 mm | 1960 | 1650 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
| Cat.Number | Eum restim. | Fractio Load | Orithyia Diae. | Structure | Unit Pondus | Animadverte |
| 18101 | 7mm | 35 kN | 2.0mm | 8x19W | 0.160 kg/m | 8 fila |
| 18102 | 9mm | 54 kN | 2.5mm | 8x19W | 0.26 kg/m | 8 fila |
| 18103 | 11mm | 77 kN | 3.0mm | 8x19W | 0.373 kg/m | 8 fila |
| 18104 | 13mm | 105 kN | 3.5mm | 8x19W | 0.510 kg/m | 8 fila |
| 18105 | 15mm | 137 kN | 4.0mm | 8x19W | 0.667 kg/m | 8 fila |
| 1820A | 9mm | 50 kN | 2.0mm | 12x19W | 0.250 kg/m | 12 fila |
| 18202A | 10mm | 70 kN | 2.3mm | 12x19W | 0.356 kg/m | 12 fila |
| 18203A | 11 mm | 85 kN | 2.5mm | 12x19W | 0.405 kg/m | 12 fila |
| 18204A | 12 mm | 100 kN | 2.7mm | 12x19W | 0.510 kg/m | 12 fila |
| 18205A | 13 mm | 115 kN | 3.0mm | 12x19W | 0.620 kg/m | 12 fila |
| 18206A | 14 mm | 130 kN | 3.2mm | 12x19W | 0.710 kg/m | 12 fila |
| 18207A | 15mm | 143 kN | 3.3mm | 12x19W | 0.770 kg/m | 12 fila |
| 18208A | 16mm | 160 kN | 3.5mm | 12x19W | 0.800 kg/m | 12 fila |
| 18209A | 18mm | 206 kN | 4.0mm | 12x19W | 1.06 kg/m | 12 fila |
| 18210A | 19mm | 236 kN | 4.3mm | 12x19W | 1.21 kg/m | 12 fila |
| 18211A | 20mm | 266 kN | 4.5mm | 12x1T25 | 1.31 kg/m | 12 fila |
| 18211B | 20mm | 275 kN | 4.5mm | 12x1T29 | 1.35 kg/m | 12 fila |
| 18212A | 22mm | 313 kN | 4.8mm | 12x1T25 | 1.49 kg/m | 12 fila |
| 18212B | 22mm | 325 kN | 4.8mm | 12x1T29 | 1.54 kg/m | 12 fila |
| 18213A | 24mm | 342 kN | 5.0mm | 12x1T29 | 1.65 kg/m | 12 fila |
| 18213B | 24mm | 375 kN | 5.2mm | 12x1T29 | 1.80 kg/m | 12 fila |
| 18214A | 26mm | 400 kN | 5.4mm | 12x1T29 | 1.95 kg/m | 12 fila |
| 18214B | 26mm | 405 kN | 4.5mm | 18x1T29 | 2.02 kg/m | 18 fila |
| 18215A | 28mm | 462 kN | 6.0mm | 12x1T25 | 2.24 kg/m | 12 fila |
| 18215B | 28mm | 540 kN | 5.2mm | 18x1T25 | 2.63 kg/m | 18 fila |
| 18216 | 30mm | 582 kN | 5.4mm | 18x1T29 | 2.93 kg/m | 18 fila |
| 18217 | 31mm | 680 kN | 5.8mm | 18x1T29 | 3.36 kg/m | 18 fila |
| 18218 | 32mm | 727 kN | 6.0mm | 18x1T29 | 3.60 kg/m | 18 fila |
| ECFATUS EXERCITUS PONDUS: 1/3 FRAGMENTUM PONDUS | ||||||
