Nomen: |
Supra caput linearum bicycles |
Ratum Lond: |
Maximilianus. 1.5 KN |
Conductor: |
Unius, 2, 3, 4, 6; |
Typus: |
Bicycle aut Air Cart |
Diameter Conductor: |
Maximilianus. 160 Mm |
Stipare: |
Plywood Case |
Prodcut Introductiones

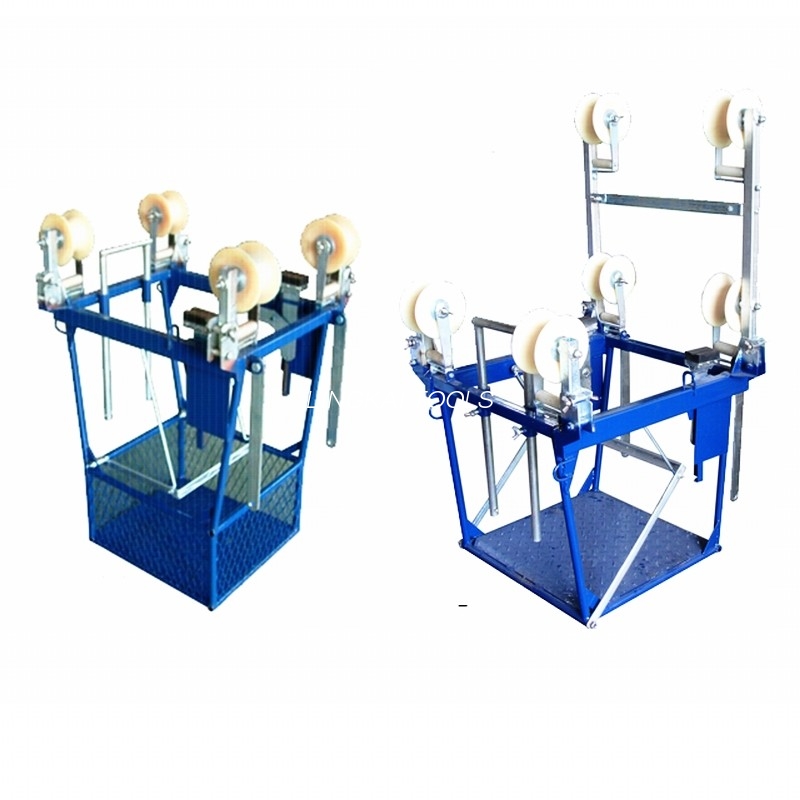

Spacer Trolleys and Overhead Lines bicycles sunt specialia instrumenta late adhibita in linea transmissionis sustentationis et operationis institutionis accessoriae. Disposuimus et produximus seriem Troglodytarum et bicyclorum ad singulas, duos fasciculos, tres fasciculos, quattuor fasciculos, sex conductores fasciculi.
Hoc quattuor fasciculi Conductores Lineae plaustri vulgo adhibentur ad attachiamenta conductor instituenda, et lineas in quattuor fasciculo conductoris, inter alios trahunt. Distantia inter conductores clare explicatur dum ordo positus est.
Technical Parameters
| Item Number | Model | Rated Load (kN) | Maximum per Diameter (mm) | Distantia inter Conductores (mm) | Pondus (kg) |
| 17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
| 500 | |||||
| 17272 | SFS3 | 1 | Φ40 | 400 450 500 |
36 |
| 450 | 38 | ||||
| 500 | 40 | ||||
| 17273 | FCS400/450 | 1 | Φ60 | 400~ 450 | 43.5 |
2 Bundled Conductors Spacer Trolleys and bicycles
|
Item No. |
Model |
Rated Load (KN) |
Procul BT. conductores |
Pondus (kg) |
Style |
|
17251 |
SFS2 |
1 |
400, 450, 500 |
XXXIV, 36 . |
Horizontalis birotus |
|
17253 |
SFS400 |
1 |
400 |
40 |
Verticalis birota |
|
17255 |
FC400/450S |
1 |
400~ 450 |
34 |
Horizontalis birotus |
|
17256 |
SFS1-400 |
1.5 |
400 |
38 |
Horizontalis plaustrum |
|
17257 |
SFS1-450 |
1.5 |
450 |
40 |
Horizontalis plaustrum |
Applicatio: Ad conductorem instituendarum spacers vel alias affectus et lineas in 2 fasciculos conductores inspicere.
Nota: Dispositio (horizontalis vel verticalis) et distantia inter sub conductores fasciculi ordine specificanda.
