Exemplar: |
SJZ-10B, SJZ-10C, LJ-300B, LJ-500B . |
Maximilianus. Vis trahens: |
30 KN |
Capstan: |
Unius |
Typus: |
Ferro Reel aut Chalybe Capstan |
Description:: |
Engine Powered Motorised Winches |
Engine: |
Diesel Aut Honda Petrol Engine |
Maximilianus. Celeritate trahens: |
80 Meter / Minute |
Shifts: |
III Deinceps I Retrorsum |

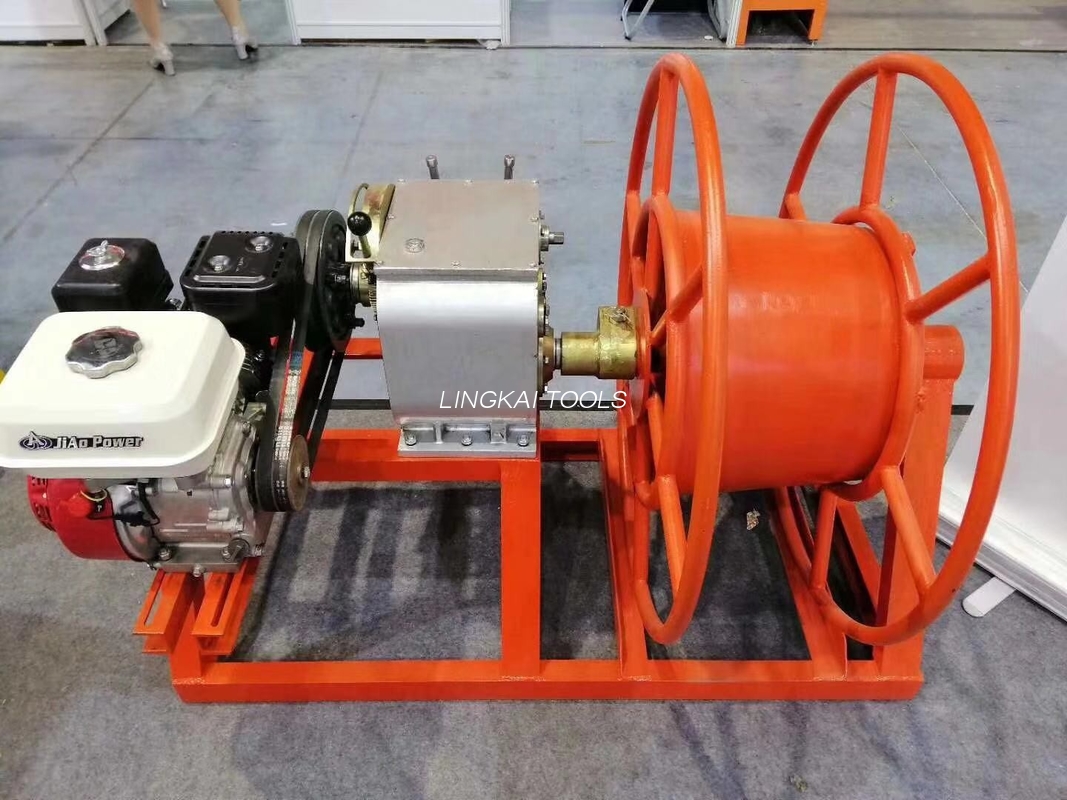

Engine Motorised Winch Take-Up Machina SJZ-10B Pro Conductor trahens Winch
Engine Motorised Winch Take-Up Machina SJZ-10B Pro Conductor trahens Winch
Motorised Tolle Winches adhibentur ad conductorem vetus et filum terrae recuperandae, sublationes materiales et funem trahentes. Ponitur pro retrahere veteres conductores et terram filis.
Motorised Cable Take-Up Machina
| Item No. | 08151 | 08152 | |
| Model | SJZ-10B | SJZ-10C | |
| Engine | Model | GX160 Gasoline engine | Z170F Diesel engine |
| Virtus (hp) | 5.5 | 4 | |
| Celeritas (rpm) | 1500 | 2600 | |
| Maximilianus. vis accipere-sursum (KN) | 10 | 10 | |
| Maximilianus. Accipe-sursum celeritatem (m / min) | 41 | 41 | |
| Reel Capacity (m) | ACSR95mm² | 600 | 600 |
| ACSR120mm² | 460 | 460 | |
| ACSR185mm² | 320 | 320 | |
| Pondus (kg) | 150 | 165 | |
| Ratio (m) | 1.2 x 0.9 x 1 | 1.2 x 0.9 x 1 | |
Applicatio: Ponitur ad deducendum vetus conductor vel filum terrae in linea chordarum.
Features: Machina instructa HONDA machinam petrolem vel machinam pellentesque. Tympanum chalybeum delapsum esse potest ad mutationem vetus conductoris vel terrae filum.
Motorised Take-sursum Winch Machina (Diesel engine vel Honda Petrol Engine)
| Item No. | 08192 | 08193 | 08194 | |
| Model | LJ-300B | LJ-DA | LJ-D | |
| Diameter Capstans (mm) | Φ300 | Φ500 | Φ500 | |
| Petrol Engine | Model | Petrol GX270 | R175A | Petrol GX270 |
| Virtus (hp) | 9 | 6 | 9 | |
| Celeritas (rpm) | 3600 | 2600 | 3600 | |
| Trahere vim (KN) / velocitatem excute (m/min) | I | 25/8.5 | 16/10.5 | 16/13.6 |
| II | 15/13.4 | 10/16.6 | 10/21.5 | |
| III | 6/33.5 | 4/40.8 | 4/53.6 | |
| Reverse | /9.6 | /11.8 | /15.3 | |
| Dimensio (mm) | 870 x 620 x 650 | 920 x 700 x 710 | 900 x 700 x 710 | |
| Pondus (kg) | 140 | 190 | 150 | |
Applicatio: Ponitur ad deducendum vetus conductor vel filum terrae in linea chordarum.
Features: Machina instructa HONDA machinam petrolem vel machinam pellentesque. Ratio fregit latis ad salutem instructa est.
