Typus: |
Pes et manus |
Emitte oleum tuum; |
Pressura 13cc |
Piston Directio: |
Duplex |
Stipare: |
lobortis Box |
MOQ: |
1set |

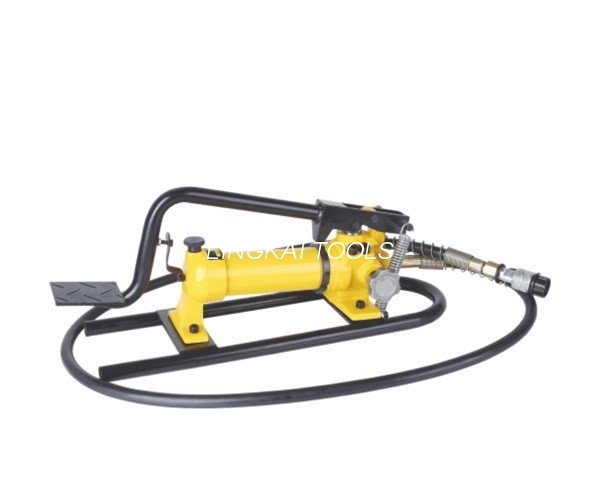

70Mpa HYDRAULICUS Manus Pump Price Manual Pump / Petal Type Pump cum HYDRAULICUS Jack
Applicationem: Supple oleum pressurized compatible instrumenta
Una-agens manus Operated
Rated Pressure: 700Bar (1000psi)
Oleum Alveus: 900CC
Operantes Impetus: Minimum Pressura 0-20Bar Maximum Pressura: 20-700Bar
Oleum Delivery Volo: Minimum Pressura 12.26cc/plaga Maximum Pressura 2.26cc/plaga.
Manus Hydraulica Pump CP-700 est manus-operata Singulus-Agens sentinam.
Oleum pressurisatum praebere adhibetur ad compatibilia remota instrumenta simplicia agendi;
Crimping Head / Secans Head / Cylindrus / Pipe bender / Instrumenta Busbar etc.
Ubi 700Bar (1000PSI) pressionis laborat opus est. Cum PT 3/8" coniugator velox;
soleatus celeriter cum instrumentis compatible coniungi potest. Duplex velocitas unitatis et salus valvae intus congregatae operationem faciunt celeriter et salvam
Hydraulica manus Pump Price Manual Pump / Petal Type Pump cum HYDRAULICUS Jack
|
Item numerus |
16164C | 16164 | 16164A | 16164B |
|
Model |
CP-180 | CP-700 | CP-700A | CFP-800B |
|
Type |
manus | manus | manus | pede laoreet |
|
Max output pressura |
/ | humilis pressura 2Mpa | humilis pressura 2Mpa | humilis pressura 2Mpa |
| princeps pressura 70MPa | princeps pressura 70Mpa | princeps pressura 70Mpa | princeps pressura 70Mpa | |
|
Output of * et oleum |
/ | humilis pressura 13cc | humilis pressura 13cc | humilis pressura 13cc |
| princeps pressura 1.8cc |
princeps pressura 2.3cc |
princeps pressura 2.3cc | princeps pressura 2.3cc | |
|
Facultatem oleum |
350cc | 900cc | 2700cc | 600cc |
|
Directio piston |
una | duplici | duplici | duplici |
|
(KG) Pondus |
approx.N.W9.5KG G.W10.9KG |
approx.N.W9.5KG G.W10.9KG |
approx.N.W14.1KG G.W15.5KG |
approx.N.W9.8KG G.W10.8KG |
|
(LxWxH) Mensuratio |
340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
|
sarcina |
charta arca | charta arca | charta arca | charta arca |
