Nomen: |

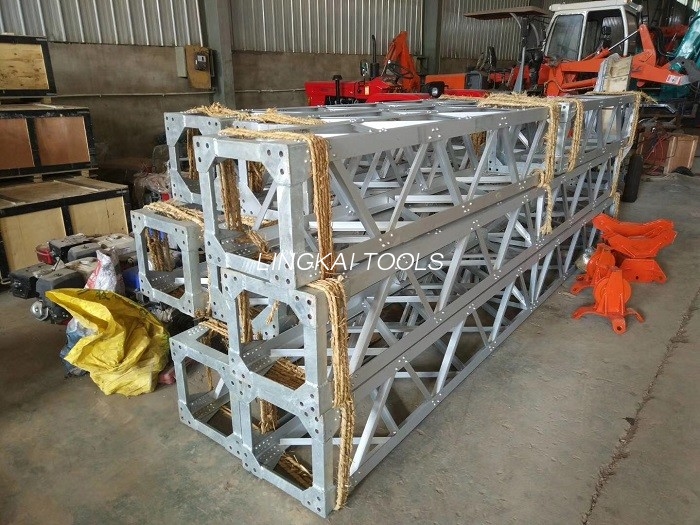

Gin Pole |
Exemplar Number: |
LBR |
Testimonia: |
CE ISO |
Typus: |
A figura |
Materia: |
Aluminium Alloy |
Std: |
ISO |
Order numerus | Model | Basestroke /(m) allowablevertical onus (KN) | Pondus (kg/m) | Order numerus | Model | Allowableaxial onus (kN) | Pondus (kg/m) |
03361 | LBR250-8 | 2.8/72 | 10.5 | 03404 | LBR400-14B | 4.9/98 | 16.5 |
03362 | LBR250-9 | 3.1/56 | 03405 | LBR400-15B | 5.2/86 | ||
03363 | LBR250-10 | 3.5/45 | 03406 | LBR400-16B | 5.6/75 | ||
03364 | LBR250-11 | 3.8/38 | 03407 | LBR400-17B | 5.9/69 | ||
03365 | LBR250-12 | 4.2/32 | 03408 | LBR400-18B | 6.3/60 | ||
03366 | LBR250-13 | 4.5/27 | 03411 | LBR500-13A | 4.5/162 | 18 | |
03367 | LBR250-14 | 4.9/22 | 03412 | LBR500-14A | 4.9/148 | ||
03368 | LBR250-15 | 5.2/20 | 03413 | LBR500-15A | 5.2/136 | ||
03371 | LBR300-8 | 2.8/100 | 11 | 03414 | LBR500-16A | 5.6/125 | |
03372 | LBR300-9 | 3.1/87 | 03415 | LBR500-17A | 5.9/112 | ||
03373 | LBR300-10 | 3.5/70 | 03416 | LBR500-18A | 6.3/98 | ||
03374 | LBR300-11 | 3.8/56 | 03417 | LBR500-19A | 6.6/88 | ||
03375 | LBR300-12 | 4.2/47 | 03418 | LBR500-20A | 6.9/81 | ||
03376 | LBR300-13 | 4.5/40 | 03421 | LBR500-13B | 4.5/256 | 22 | |
03377 | LBR300-14 | 4.9/35 | 03422 | LBR500-14B | 4.9/234 | ||
03378 | LBR300-15 | 5.2/31 | 03423 | LBR500-15B | 5.2/215 | ||
03379 | LBR300-16 | 5.6/26 | 03424 | LBR500-16B | 5.6/196 | ||
03381 | LBR350-8 | 2.8/120 | 13.5 | 03425 | LBR500-17B | 5.9/173 | |
03382 | LBR350-9 | 3.1/105 | 03426 | LBR500-18B | 6.3/151 | ||
03383 | LBR350-10 | 3.5/94 | 03427 | LBR500-19B | 6.6/138 | ||
03384 | LBR350-11 | 3.8/78 | 03428 | LBR500-20B | 6.9/127 | ||
03385 | LBR350-12 | 4.2/65 | 03431 | LBR600-15A | 5.2/171 | 20 | |
03386 | LBR350-13 | 4.5/58 | 03432 | LBR600-16A | 5.6/160 | ||
03387 | LBR350-14 | 4.9/46 | 03433 | LBR600-17A | 5.9/148 | ||
03388 | LBR350-15 | 5.2/42 | 03434 | LBR600-18A | 6.3/138 | ||
03389 | LBR350-16 | 5.6/37 | 03435 | LBR600-19A | 6.6/130 | ||
03391 | LBR400-11AAAAaAAA | 3.8/98 | 14.5 | 03436 | LBR600-20A | 6.9/120 | |
03392 | LBR400-12AA | 4.2/85 | 03437 | LBR600-21A | 7.3/108 | ||
03393 | LBR400-13A | 4.5/75 | 03438 | LBR600-22A | 7.6/96 | ||
03394 | LBR400-14A | 4.9/64 | 03441 | LBR600-15B | 5.2/275 | 24 | |
03395 | LBR400-15A | 5.2/56 | 03442 | LBR600-16B | 5.6/252 | ||
03396 | LBR400-16A | 5.6/48 | 03443 | LBR600-17B | 5.9/234 | ||
03397 | LBR400-17A | 5.9/44 | 03444 | LBR600-18B | 6.3/219 | ||
03398 | LBR400-18A | 6.3/38 | 03445 | LBR600-19B | 6.6/204 | ||
03401 | LBR400-11B | 3.8/147 | 16.5 | 03446 | LBR600-20B | 6.9/186 | |
03402 | LBR400-12B | 4.2/129 | 03447 | LBR600-21B | 7.3/168 | ||
03403 | LBR400-13B | 4.5/113 | 03448 | LBR600-22B | 7.6/150 |
