Exemplar: |
CO-1000 |
Crimping Force: |
550KN |
Crimping dolor: |
400-1000sqmm |
Nomen: |
Hydaaulic Cable Lugs |
Caput: |
Hexagon |
Plaga: |
26mm |

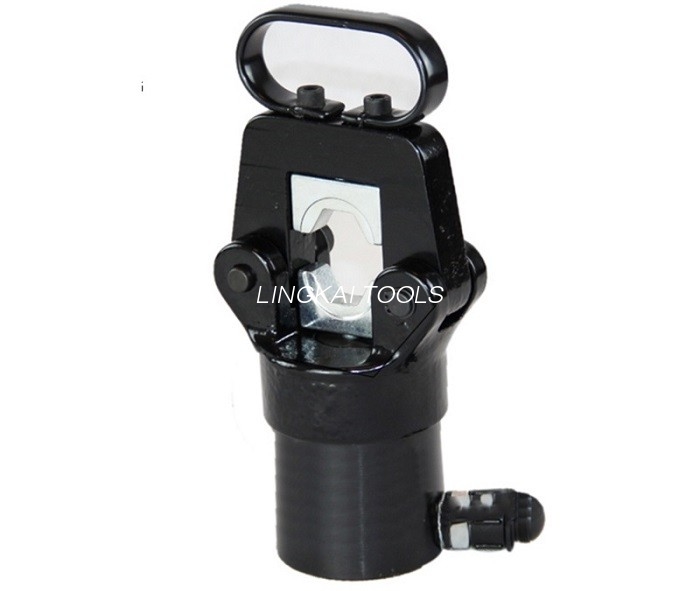

Hydraulic Al Cu Cable Crimping Tools Ternimal Connector Crimping for 630 ACSR
Hydraulici Al Cu Crimping tools
1. Donghuan Brand
2. Crimping vis 55T
3. Crimping range 400-1000sqmm
4. Mori igitur potes
5. Hydraulica crimping caput ad Hexagon
6. Opus cum 70Mpa HYDRAULICUS electrica sentinam
55 Ton Crimping caput Spec.
|
Item numerus |
16101 | 16101A | 16101B | 16101C |
|
Model |
CO-630B | CO-630A | CO-1000 | CO-400 |
|
Crimping vi |
300KN | 350KN | 550KN | 200KN |
|
Crimping range |
150-630mm² | 150-630mm² | 400-1000mm² | 16-400mm² |
| Crimping type |
hexagonum crimping |
hexagonum crimping |
hexagonum crimping |
hexagonum crimping |
|
Dies |
150,185,240,300; 400,500,630mm² |
150,185,240,300; 400,500,630mm² |
400,500, 630; 800,1000mm² |
16,25,35,50; 70,95,120,150; 185,240,300,400mm² |
|
Plaga |
24mm | 24mm | 26mm | 24mm |
|
Heigth |
approx.275mm | approx.350mm | approx.400mm | approx.250mm |
|
(KG) Pondus |
approx.N.W11.5KG G.W20KG |
approx.N.W16.7KG G.W25.5KG |
approx.N.W32KG G.W39KG |
approx.N.W5.4KG G.W10KG |
|
sarcina |
lignea causa | lignea causa | lignea causa | charta arca |
Hydraulic Al Cu Cable Crimping Tools Ternimal Connector Crimping for 630 ACSR Conductor is
Operantes cum manual hydrau sentinam vel electrica hydrau sentinam (70MPa)
