Exemplar: |
8 Strands ATW7mm, 9mm, 11mm, 13mm |
Descriptio: |
Anti Twisting Steel Wire Rope |
Constructio Strand: |
1 X 19W |
Syntaxis: |
Single Conductor Or OPGW |
Onus fractionis: |
137.51 KN |
Gradus Steel filum: |
1960 N/MM2 |
Lubricatio: |
Libitum |
Numerus Strands: |
8 |
8 Strands Anti- tortis Ferro filum tortis Funis normaliter adhibetur ad caput trahendum unum conductor vel fibra optica in lineas transmissonas. Quia una acia funiculorum 8 filorum maior est quam restis 12 filorum, melius est ad ligamen funiculi parvi ponderis ut 7mm, 9mm et 11mm funiculi.
Funis praesertim ex altis viribus galvanized filo ferro filo plectitur, et plerumque ad caput virtutis lineae chordae et operationis tendentis adhibita est. Funis altae virium multum commoda habet: flexibilitas alta, stabilitas gyrationis integra, distributio pressionis homogenea inter fila elementaria. Augetur efficacia in operationibus chordis. Ita funis semper usus est ut funis gubernator filum vel funem trahens ad vim rectae constructionis.
8 Strands Anti filum tortis tortis ferro funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 18101 | 7 | 35 | Φ2.0 | 1960 | 166 | |
| 18102 | 9 | 54 | Φ2.5 | 1960 | 270 | |
| 18103 | 11 | 78 | Φ3.0 | 1960 | 412 | |
| 18104 | 13 | 105 | Φ3.5 | 1960 | 530 | |
| 18105 | 15 | 117 | Φ4.0 | 1960 | 706 | |

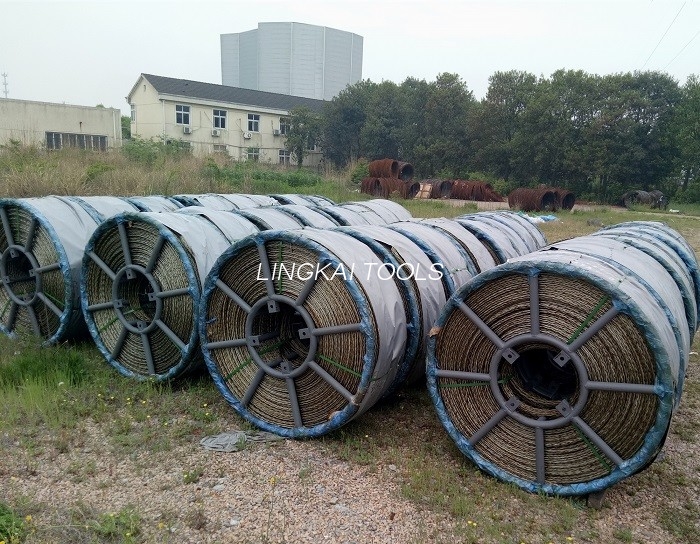

9mm funis e tortis 8 filorum 1X19W filo galvanized, 1000 metri/tympani
Drum ferro conferta in 950mm diam.
| Cat.Number | Eum restim. | Fractio Load | Orithyia Diae. | Structure | Unit Pondus | Animadverte |
| 18101 | 7mm | 35 kN | 2.0mm | 8x19W | 0.160 kg/m | 8 fila |
| 18102 | 9mm | 54 kN | 2.5mm | 8x19W | 0.26 kg/m | 8 fila |
| 18103 | 11mm | 77 kN | 3.0mm | 8x19W | 0.373 kg/m | 8 fila |
| 18104 | 13mm | 105 kN | 3.5mm | 8x19W | 0.510 kg/m | 8 fila |
| 18105 | 15mm | 137 kN | 4.0mm | 8x19W | 0.667 kg/m | 8 fila |
| 1820A | 9mm | 50 kN | 2.0mm | 12x19W | 0.250 kg/m | 12 fila |
| 18202A | 10mm | 70 kN | 2.3mm | 12x19W | 0.356 kg/m | 12 fila |
| 18203A | 11 mm | 85 kN | 2.5mm | 12x19W | 0.405 kg/m | 12 fila |
| 18204A | 12 mm | 100 kN | 2.7mm | 12x19W | 0.510 kg/m | 12 fila |
| 18205A | 13 mm | 115 kN | 3.0mm | 12x19W | 0.620 kg/m | 12 fila |
| 18206A | 14 mm | 130 kN | 3.2mm | 12x19W | 0.710 kg/m | 12 fila |
| 18207A | 15mm | 143 kN | 3.3mm | 12x19W | 0.770 kg/m | 12 fila |
| 18208A | 16mm | 160 kN | 3.5mm | 12x19W | 0.800 kg/m | 12 fila |
| 18209A | 18mm | 206 kN | 4.0mm | 12x19W | 1.06 kg/m | 12 fila |
| 18210A | 19mm | 236 kN | 4.3mm | 12x19W | 1.21 kg/m | 12 fila |
| 18211A | 20mm | 266 kN | 4.5mm | 12x1T25 | 1.31 kg/m | 12 fila |
| 18211B | 20mm | 275 kN | 4.5mm | 12x1T29 | 1.35 kg/m | 12 fila |
| 18212A | 22mm | 313 kN | 4.8mm | 12x1T25 | 1.49 kg/m | 12 fila |
| 18212B | 22mm | 325 kN | 4.8mm | 12x1T29 | 1.54 kg/m | 12 fila |
| 18213A | 24mm | 342 kN | 5.0mm | 12x1T29 | 1.65 kg/m | 12 fila |
| 18213B | 24mm | 375 kN | 5.2mm | 12x1T29 | 1.80 kg/m | 12 fila |
| 18214A | 26mm | 400 kN | 5.4mm | 12x1T29 | 1.95 kg/m | 12 fila |
| 18214B | 26mm | 405 kN | 4.5mm | 18x1T29 | 2.02 kg/m | 18 fila |
| 18215A | 28mm | 462 kN | 6.0mm | 12x1T25 | 2.24 kg/m | 12 fila |
| 18215B | 28mm | 540 kN | 5.2mm | 18x1T25 | 2.63 kg/m | 18 fila |
| 18216 | 30mm | 582 kN | 5.4mm | 18x1T29 | 2.93 kg/m | 18 fila |
| 18217 | 31mm | 680 kN | 5.8mm | 18x1T29 | 3.36 kg/m | 18 fila |
| 18218 | 32mm | 727 kN | 6.0mm | 18x1T29 | 3.60 kg/m | 18 fila |
| ECFATUS EXERCITUS PONDUS: 1/3 FRAGMENTUM PONDUS |
||||||
