RATIO VOLTAGE: |
35KV |
MATERIA: |
Filum aeris |
Applicare: |
TRANSMISSIONE LINEA |
LICENTIA: |
CE ISO |
AERARIA: |
35MM2 |
EXEMPLUM: |
Transmissio, Substantia |

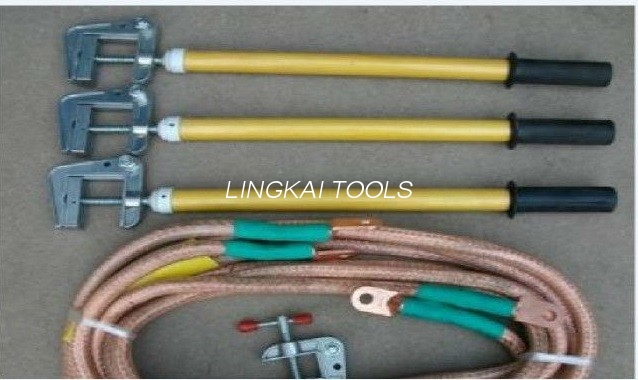

JDX 35KV Voltage Electric Security Tools Grounding Rod with Earth Clamp
JDX 35KV Voltage Electric Security Tools Grounding Rod with Earth Clamp
Distributio linearum et systematum
B tradendae lineae et systemata
C bus substation
D systemata sub terra
F circuitus industriae et systemata
4. Pluma: tempus ac portatile.
Products:
|
Classis intentione |
humus mollis filum aeris |
(MM) Longitudo in terra operatio virga |
|||
| (MM) | (M) |
Insulating |
Handheld |
Totalis longitudo |
|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 |
9*3 2*3+2 |
1300 | 700 | 2000 |
| 220KV | 25,35 |
9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35, 50 | 12*3 4*3+25 | 3000 | 1100 | 4100 |
| 500KV | 35, 50 | 13*3~20*3 | 4100 | 1400 | 5500 |
|
220-500KV Supra caput humus filum |
25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
|
Princeps pressura test armorum |
35, 50 | 5*3~10*3 | 700 | 300 | 1000 |
Valor aestimatus filum aeris per metrum;
|
MM Sectional area |
10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
|
MM Diameter filum |
4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
|
MM Vagina diametri |
7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
|
MΩ Resistentia valorem |
1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
|
A salus current |
90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
Configurationis:
Adhibetur: Idoneum est ad lineas tradendas, vires plantarum et apparatum substanciam, brevem
Circuitus grounding for power outage tuendae.
Features: Filum clamper cum Aluminium Alloy fusura, altum robur, bonum conductivity
1.Product characters: hamus lucem aluminium mixturae compressionis adoptat proiectionem, polus uti lux epoxy fabricandi, altitudo virium, capacitas electrici conductionis excellens. Filum Baling electrolysis aerei utitur. Temperatus ambitus pro tutela: ±40°C
2.Product speciem:
(1) Plumbum pascha deducta, terra plumbum, terra vectis et terra fine fibulae.
(2) Crux area filum terrestre : 16mm2 , 25mm2 , 35mm2 , 50mm2 , 70mm2 , etc.
Potest etiam id efficere ut petitio tua.
