Crimping Force: |
300T |
Nam: |
Hexa Crimping |
Height: |
Proxime 480mm |
Crimping Type: |
Hexa Caput |
Plaga: |
35mm |
Crimping dolor: |
14-100mm |

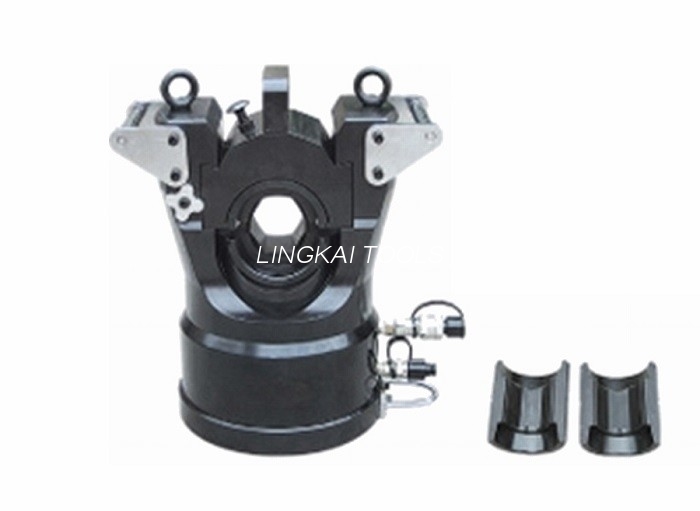

QY-300 Hydraulica Crimping Tools 300T Hydraulica Cripming Machina pro ACSR Conductor
Split-type Productio Hydraulica Crimping forcipes:
|
Item numerus |
16103 | 16103A | 16104 | 16105 | 16106 |
|
Exemplar |
YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping vi |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
|
Crimping type |
hexagonum crimping |
hexagonum crimping |
|||
|
Plaga |
24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
(KG) Pondus |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
|
sarcina |
lignea causa | lignea causa | |||
QY-300 Hydraulica Crimping Tools 300T Hydraulica Cripming Machina pro ACSR Conductor
200T necesse est sentinam hydraulicam esse ut rapidus super altum pressionis hydraulicae sentinam (duplex scaena put e sentinam)
QY-300 Hydraulica Crimping Tools 300T Hydraulica Cripming Machina pro ACSR Conductor
Hoc instrumentum QY-300 hydraulicum crimping inservit conductor, filum terrae, et terminales filis aeneis cum filis aluminii connectentes. Productum nostrum structuram perscriptorem tenet, rationabilem et compactam. Parari potest cum statione sentinam hydraulicam pressionis altae supereminentem.
Principalis Specifications
| Item Number | Maximum Crimping Force (kN) | Maximum oleum Pressura (MPa) | Applicable Diameter (mm) | Plaga (mm) | Net Pondus (kg) | Specifications |
| 16106A | 3000 | 94 | Aluminium tube ≤Φ100 Ferro tube≤Φ50 |
35 | 126 | G-16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 42, 44, 45, 48, 50; L- 30, 32, 34, 36, 40, 42, 45, 48, 52, 60, 65, 70, 74, 76, 80, 95, 100 |
