Lubricatio: |
Libitum |
Galvanizing: |
Hot Dipped Galvanization |
TORMENTUM filum ANTI REMIGIUM: |
XXVI MM ANTI TORTOR RECTOR FERRUM filum funiculus |
Exemplar: |
ATW26 X 600M |
Onus fractionis: |
406 KN |
Latin Longitudo: |
600-700 Meters Libitum |
Strands: |
12 VEL 18 |
Stipare: |
Steel Drum |
Diameter Strand:: |
5.4MM |
26MM Anti filum tortis tortis funiculi ferro
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 18214A | 26 | 400 | Φ5.4 | 1960 | 1950 | |

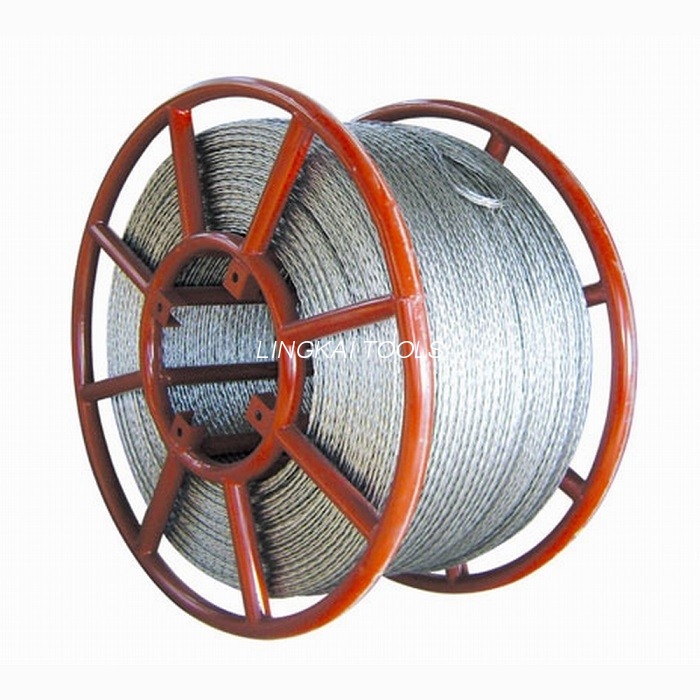

26mm funis e filo 12 filorum 1X29Fi tortis, 700-800 metri/tympani
1500mm-1600mm diametro ferro tympani conferta.
Anti- tortilis funis ferreus maxime tortus est ex 12 fila altae fortitudinis, altae filum galvanizatum flexibile ferro. Litus chalybeis tortis flexibilitatem altam habet, integram stabilitatem gyrationis sub vi tensionis habet.
Pressionem inter fila elementaria homogene distribuere potest. Peculiaris funis efficientiam augere potest in linea transmissionis supra caput opus chordarum. Funis in tympano ferro est inclusus qui directe in reel viscum REMEX institui potest.
8 Strands Anti filum tortis tortis ferro funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 18101 | 7 | 35 | Φ2.0 | 1960 | 166 | |
| 18102 | 9 | 54 | Φ2.5 | 1960 | 270 | |
| 18103 | 11 | 78 | Φ3.0 | 1960 | 412 | |
| 18104 | 13 | 105 | Φ3.5 | 1960 | 530 | |
| 18105 | 15 | 117 | Φ4.0 | 1960 | 706 | |
9mm funis e tortis 8 filorum 1X19W filo galvanized, 1000 metri/tympani
Drum ferro conferta in 950mm diam.
12 Strands Anti filum chalybe tortis tortis funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 1820A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.7mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 313 KN | 4.8 mm | 1960 | 1500 | |
| 18213A | 24 mm | 372 KN | 5.2 mm | 1960 | 1800 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
