Exemplar: |
EPCB-301 |
Munus: |
Inflexio Secans Punching |
Nomen: |
Hydarulic Bus Bar Machine |
vergentis; |
150x10mm Al/cum Plates |
Vis: |
17T,20T |
Stipare: |
Lignea Causa |

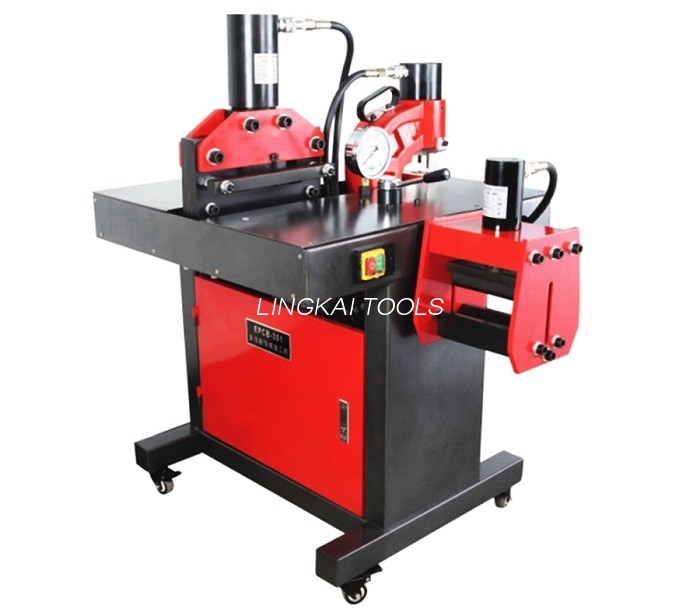

220V 50HZ Hydraulic Busbar Bending Machina Pro 150X10mm Al/Cu Plate
Hydraulica Bus-bar machina
|
Item numerus |
06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
|
Munus |
cum tribus functionibus incisis; pulsandi inflexio |
cum tribus, sectione; pulsare inflexio crimping |
cum quattuor functionibus incisis; pulsandi inflexio (horizontalis et erective) |
|
Dimensio opus mensam |
approx.690x690x730mm |
approx.690x690x730mm | approx.690x690x730mm |
|
Voltage una tempus |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oleum pressura |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
|
vis tendentes |
170KN/200KN | 170KN/200KN | 270KN |
|
range tendentes |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
|
Secans vis |
200KN/300KN | 200KN/300KN | 200KN/300KN |
|
Secans insonuit |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
|
Pulsandi vis |
300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Procul ab foraminis ad sheet latus |
95x110mm max | 95x110mm max | 95x110mm |
|
Punch sonuit |
φ10.5mmφ13.8mm φ17mmΦ20.5mm |
φ10.5mmφ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm), 1/2"(φ13.8mm); 5/8"(φ17mm),3/4"(φ20.5mm) |
|
sarcina |
lignea causa | lignea causa | lignea causa |
220V 50HZ Hydraulic Busbar tendentes Machina secans enim 150X10mm Al/Cu Plate:
1. Dongchuan Brand
2. Habet tria munera, secare, pulsare, inflectere
3. 220V 50HZ intentione unius tempus
4. ad curvationem et sectionem AL/Cu Plate
5. Pungere cuprum, aluminum et demissa chalybe carbonis pulsandi
6. Exemplar magnitudinum nativus esse potest.
