Exemplar: |
EPCB-301 |
Nomen: |
Hydraulic Bus Bar Processor |
Voltage: |
220V 50HZ |
Cubile Force: |
170KN/200KN |
Vis secans: |
200kn300kn |
Munus: |
Secans Punching tendentes |

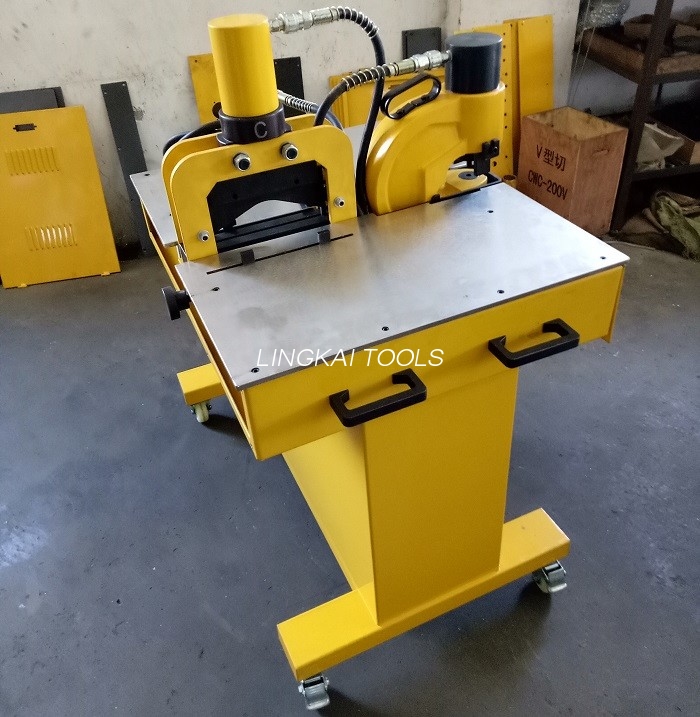

EPCB-301 Multi Function HYDRAULICUS Bus bar Processor Machina secans, pulsans et curvans
Hydraulica Bus-bar machina
| Item numerus | 06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
| Munus |
cum tribus functionibus incisis; pulsandi inflexio |
pulsare inflexio crimping |
cum quattuor functionibus incisis; pulsandi inflexio (horizontalis et erective) |
|
Dimensio opus mensam |
approx.690x690x730mm | approx.690x690x730mm | approx.690x690x730mm |
|
Voltage una tempus |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oleum pressura |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
| vis tendentes | 170KN/200KN | 170KN/200KN | 270KN |
|
range tendentes |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
| Secans vis | 200KN/300KN | 200KN/300KN | 200KN/300KN |
| Secans insonuit | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
| Pulsandi vis | 300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Procul ab foraminis ad sheet latus |
95x110mm max | 95x110mm max | 95x110mm |
| Punch sonuit |
φ10.5mmφ13.8mm φ17mmΦ20.5mm |
φ10.5mmφ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm), 1/2"(φ13.8mm); 5/8"(φ17mm),3/4"(φ20.5mm) |
| sarcina | lignea causa | lignea causa | lignea causa |
Multi-munus Busbar Processing Machine
Multi Function Processus Hydraulicis Busbaris est compositum pulsare, flectere et secare.
Manometer cum pressione 1000kgs/cm processus sub potestate facit, machina ne obruantur.
Manus transitum facile accommodetur ad altitudinem et latitudinem schedae regendam
Quattuor valvae directionis processum pulsationis facit, curvus et secans accurate eunt
Certa ac stabilis pedites genus switch
