Nomen: |
3T cable Winch Puller |
Ratum Lond: |
30kn |
Engine: |
Machina electrica |
Exemplar: |
JJD-3 |
Voltage: |
220V/380V |
Warranty: |
3years |
3 Ton cable Winch Electric Winch 220v et 380v Winch pro Power Construction
3 Tons Portable Power Cable trahens Winch cum Electric Engine in Power Line Construction
Potestased Winch (Cingulum coegi)
Item numerus | Exemplar | gyratio | Apparatus | (RPM) | (M/MIN) | (T) | (KW) | (MM) | (KG) |
| 09121 | JJQ-3Q | corotation | low | 9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
ast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
conversio | Reverse | 7.5 | 3.3 | Non elevatio | |||||
| 00921A | JJC-30 | corotation | low | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
ast | 21.0 | 9.0 | 1.8 | ||||||
conversio | Reverse | 10.0 | 4.5 | Non elevatio | |||||
| 09121B | JJD-30 | corotation | low | 8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
ast | 10.5 | 6.5 | 1.8 | ||||||
conversio | Reverse | 7.0 | 3.0 | Non elevatio | |||||
| 09123 | JJQ-50 | corotation | low | 6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
ast | 16.0 | 9.0 | 2.2 | ||||||
conversio | Reverse | 7.0 | 4.0 | Non elevatio | |||||
| 09123A | JJC-50 | corotation | low | 8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
ast | 19.0 | 11.0 | 2.3 | ||||||
conversio | Reverse | 10.0 | 5.5 | Non elevatio | |||||
| 09123B | JJD-50 | corotation | low | 5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
ast | 14.0 | 8.0 | 3.0 | ||||||
conversio | Reverse | 7.0 | 4.0 | Non elevatio | |||||
| 09125 | JJQ-80 | corotation | low | 5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
ast | 9 | 5 | 4.5 | ||||||
conversio | Reverse | 5 | 3 | Non elevatio | |||||
| 09125A | JJC-80 | corotation | low | 7 | 4 | 8 | 7.86 | 1000x750x630 | 230 |
ast | 13 | 7.5 | 4 | ||||||
conversio | Reverse | 6.5 | 3.7 | Non elevatio |

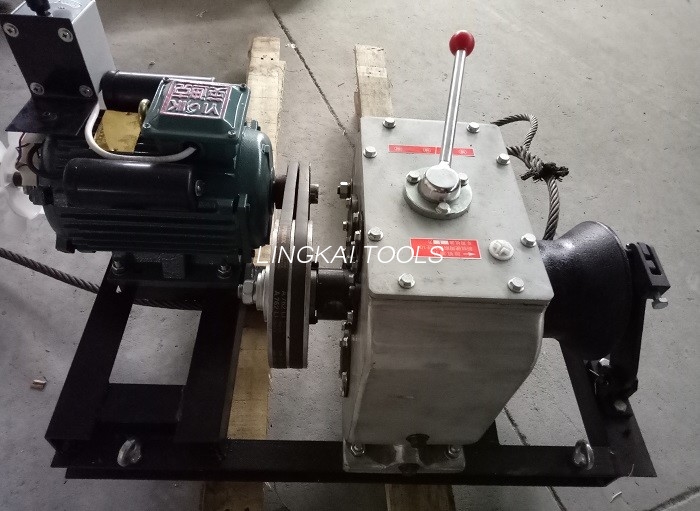

III Ton Electric Engine Towing Winch enim cable trahens
3 Ton Engine Powered Electric Cable Puller Winch used for turre erection, pole setting, stringing wire in electrical power line construction.
Winch mutari potest per postulationem, ut capstans curvae mutans in figuram rectam etiam cylindricam et cum fune ferro veniens.
Unum tempus et tres partes intentionis habet, nostra Planta etiam winch reficere potest, et tibi optimum Tech firmamentum in situ dare quam ad has materias currere.
Oratio
No 6, 1st Rd Xiangshan Industrialis Area Ningbo, Provincia Zhejiang, China
Tel
