Exemplar: |
ATW26mm, 28mm, 30mm, 31mm, 32mm |
Descriptio: |
Anti Twisting Steel Wire Rope |
Constructio Strand: |
1X29T |
Syntaxis: |
Princeps Voltage Big Conductors |
Onus fractionis: |
727 KN |
Gradus Steel filum: |
1960, 2060 N/MM2 |
Lubricatio: |
Libitum |
18 Strands Anti- tortis Ferro filum tortis Funis plerumque adhibitus est ad constringendum caput magnum conductorem in 800 KV vel 1000 KV lineas transmissiones. 1X29T Ferre ex alto vires ferro plectitur altas Ut solveret onus altum.
Praecipue plectitur ex filo filo filo galvanizato alto robore, et solere adhiberi ad potentiam capitis lineae chordae et operationis trahentis. Funis altae virium multum commoda habet: flexibilitas alta, stabilitas gyrationis integra, distributio pressionis homogenea inter fila elementaria, efficientiam augens in operationibus stringendis. Ita funis semper usus est ut funis gubernator filum vel funem trahens pro potentia recta constructione
18 Strands Anti filum tortis tortis ferro funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 18214B | 26 | 405 | Φ4.5 | 1960 | 2020 | |
| 18215B | 28 | 540 | Φ5.2 | 1960 | 2630 | |
| 18216 | 30 | 582 | Φ5.4 | 1960 | 2930 | |
| 18217 | 31 | 680 | Φ5.8 | 1960 | 3360 | |
| 18218 | 32 | 727 | Φ6.0 | 1960 | 3600 | |

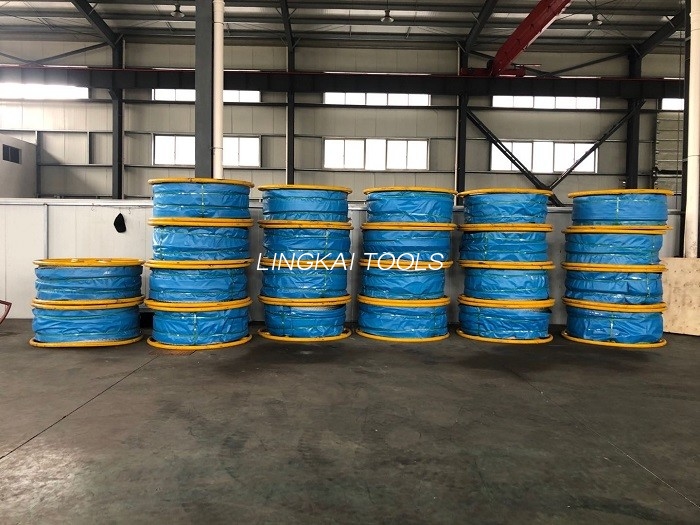

26mm funis tortis ex 18 filis 1X29T filo galvanizato, 600 metri / tympani
1500mm dia ferro tympani conferta.
| Cat.Number | Eum restim. | Fractio Load | Orithyia Diae. | Structure | Unit Pondus | Animadverte |
| 18101 | 7mm | 35 kN | 2.0mm | 8x19W | 0.160 kg/m | 8 fila |
| 18102 | 9mm | 54 kN | 2.5mm | 8x19W | 0.26 kg/m | 8 fila |
| 18103 | 11mm | 77 kN | 3.0mm | 8x19W | 0.373 kg/m | 8 fila |
| 18104 | 13mm | 105 kN | 3.5mm | 8x19W | 0.510 kg/m | 8 fila |
| 18105 | 15mm | 137 kN | 4.0mm | 8x19W | 0.667 kg/m | 8 fila |
| 1820A | 9mm | 50 kN | 2.0mm | 12x19W | 0.250 kg/m | 12 fila |
| 18202A | 10mm | 70 kN | 2.3mm | 12x19W | 0.356 kg/m | 12 fila |
| 18203A | 11 mm | 85 kN | 2.5mm | 12x19W | 0.405 kg/m | 12 fila |
| 18204A | 12 mm | 100 kN | 2.7mm | 12x19W | 0.510 kg/m | 12 fila |
| 18205A | 13 mm | 115 kN | 3.0mm | 12x19W | 0.620 kg/m | 12 fila |
| 18206A | 14 mm | 130 kN | 3.2mm | 12x19W | 0.710 kg/m | 12 fila |
| 18207A | 15mm | 143 kN | 3.3mm | 12x19W | 0.770 kg/m | 12 fila |
| 18208A | 16mm | 160 kN | 3.5mm | 12x19W | 0.800 kg/m | 12 fila |
| 18209A | 18mm | 206 kN | 4.0mm | 12x19W | 1.06 kg/m | 12 fila |
| 18210A | 19mm | 236 kN | 4.3mm | 12x19W | 1.21 kg/m | 12 fila |
| 18211A | 20mm | 266 kN | 4.5mm | 12x1T25 | 1.31 kg/m | 12 fila |
| 18211B | 20mm | 275 kN | 4.5mm | 12x1T29 | 1.35 kg/m | 12 fila |
| 18212A | 22mm | 313 kN | 4.8mm | 12x1T25 | 1.49 kg/m | 12 fila |
| 18212B | 22mm | 325 kN | 4.8mm | 12x1T29 | 1.54 kg/m | 12 fila |
| 18213A | 24mm | 342 kN | 5.0mm | 12x1T29 | 1.65 kg/m | 12 fila |
| 18213B | 24mm | 375 kN | 5.2mm | 12x1T29 | 1.80 kg/m | 12 fila |
| 18214A | 26mm | 400 kN | 5.4mm | 12x1T29 | 1.95 kg/m | 12 fila |
| 18214B | 26mm | 405 kN | 4.5mm | 18x1T29 | 2.02 kg/m | 18 fila |
| 18215A | 28mm | 462 kN | 6.0mm | 12x1T25 | 2.24 kg/m | 12 fila |
| 18215B | 28mm | 540 kN | 5.2mm | 18x1T25 | 2.63 kg/m | 18 fila |
| 18216 | 30mm | 582 kN | 5.4mm | 18x1T29 | 2.93 kg/m | 18 fila |
| 18217 | 31mm | 680 kN | 5.8mm | 18x1T29 | 3.36 kg/m | 18 fila |
| 18218 | 32mm | 727 kN | 6.0mm | 18x1T29 | 3.60 kg/m | 18 fila |
| ECFATUS EXERCITUS PONDUS: 1/3 FRAGMENTUM PONDUS | ||||||
shipment
1. Antias retorto filum ferri funis in vase portabitur
2. Nos intra unum mensem regulariter acceptis solutione products navem faciemus.
3. Stock is available for standard product.
