Nomen: |
Hydraulica Compressor |
Exemplar: |
QY |
Maximum compressionem: |
3000 |
Oleum Max Impetus: |
94 Mpa |
Applicare: |
Crimping ACSR |
Plaga: |
35 Mm |

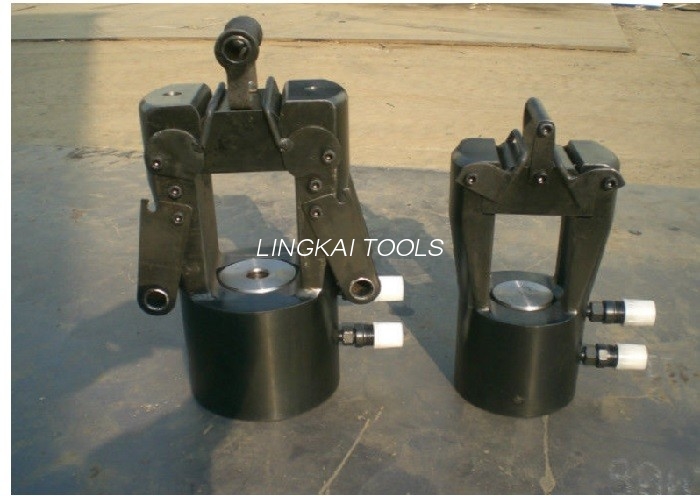

QY-125 125 Ton Hydraulic Compressor Hydraulic Cable Crimping Tool For ACSR
QY-125 125 Ton Hydraulic Compressor Hydraulic Cable Crimping Tool For ACSR
Compressores hydraulici, maxime in presso ficto ferro effecti, has notas habent: pondus/potentiam excellentem; cyclum valde brevem prementium (omnes torcularia emissio anconarum hydraulically agitatae habent); quaelibet unitas potentiae seu sentinae hydraulicae manualis (et hoses) convertitur cum quolibet torculari hydraulico.
Specificatio:QY-125 125 Ton Hydraulic Compressor Hydraulic Cable Crimping Tool For ACSR
| Compressor enim, QY-35 opus est cum manu sentinam vel sentinam electricam Single-tube; QY-65, QY-125, QY-200 opus sentinam hydraulicam. | |||||
| Exemplar | Max compressionem vis (kN) | Rated pressura (kN) | Conductor size (mm) | Max plaga (mm) | Pondus (kg) |
| QY-35 | 350 | 70 | ≤240 | 25 | 12 |
| QY-65 | 650 | 94 | ≤500 | 25 | 25 |
| QY-125 | 1250 | 94 | ≤720 | 25 | 40 |
| QY-200 | 2000 | 94 | ≤1440 | 25 | 85 |
Velox details:QY-125 125 Ton Hydraulic Compressor Hydraulic Cable Crimping Tool For ACSR
1. Transmissio Linea Stringing Equipment Accessories & Tools
2. HYDRAULICUS compressor ad caput conductor
3. Max compressio vis: 1250kN
4. Conductor size: ≤720
5. Aluminium moritur: 26~ 60mm Ferro Dies: 12~ 26mm
6. Cum Gasoline sentinam, Max vis: 100Mpa
| Nam Die | ||||
| Exemplar | Compressor exemplar | Aluminium Dies | Dies ferro | Dies aeris |
| QYD-35 | QY-35 | 16/18/20/22/24/26/30/32/34/36 | 16~500mm2 | |
| QYD-65 | QY-65 | 26/28/30/32/34/36/38/40/45/50 | 12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-125 | QY-125 | 26/28/30/32/34/36/38/40/45/50 /52/55/60 |
12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-200 | QY-200 | 26/28/30/32/34/36/38/40/45/50 /52/55/60/65/70/75/80 |
12/14/16/18/20/22/24/26 /28/30/32 |
16~800mm2 |
| Nam gasoline sentinam | ||||||
| Exemplar | Max compressionem vis | Pressura rated | Fluere | Gasoline volumen | Potestas | Pondus |
| YB-100 | 100Mpa | 80 kN | 1.6L/min | 8L | 4hp | 83kg |
Applicatio:QY-125 125 Ton Hydraulic Compressor Hydraulic Cable Crimping Tool For ACSR
Applicatum ad intra et extra project transmissionis et cubiculi distribuendi, sicut usus professionalis pro omnibus generibus connexionis ferramentorum / funis supra caput;10KV 500KV princeps voltage funis thecae, fibulae nudae terminales, sex angulus generis moriuntur mittentes, stricta et non facile cadunt, bonum conductivity electricae;Continuare progressionem T64 materiarum mixturae Titanii, ut constructionis pondus minuat.Grata cogo fingere iussit.
Please click below picture to find the video about application method
