Exemplar: |
ATW9mm, 11mm, 16mm, 18mm, 22mm |
Descriptio: |
Anti Twisting Steel Wire Rope |
Constructio Strand: |
1 X 19W Aut 1X25T, 1X29T |
Syntaxis: |
Single Conductor Or OPGW |
Onus fractionis: |
462kn |
Gradus Steel filum: |
1960, 2060 N/MM2 |
Lubricatio: |
Libitum |
Numerus Strands: |
12 |
12 Strands Anti- tortis Ferro filum tortis funis normaliter adhibitum est ad constringendum caput conductoris vel fibra optica in electricis lineis potentiae.
Anti tortis Ferro filum tortis funis praecipue e filo ferri filo galvanizato plectitur, et plerumque ad caput potentiae lineae chordae et operationis tendentis adhibita est. Funis altae virium multum commoda habet: flexibilitas alta, stabilitas gyrationis integra, distributio pressionis homogenea inter fila elementaria. Augetur efficacia in operationibus chordis. Ita funis semper usus est ut funis gubernator filum vel funem trahens pro potentia recta constructione

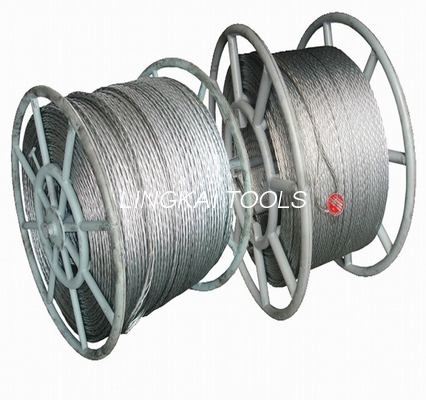

12 Strands Anti filum chalybe tortis tortis funiculus
| Item No. | Nominal diameter | Fractio Lond (KN) | Diameter una linea (mm) | Normal T/S (N/mm²) | Net pondus (kg/1000m) | |
| 1820A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.7mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 313 KN | 4.8 mm | 1960 | 1500 | |
| 18213A | 24 mm | 342 KN | 5.0 mm | 1960 | 1650 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
