Nomen: |
Hoisting Clausus |
Materia: |
Ferrum ferrum |
Ratum Lond: |
10 KN |
Hoisting Point: |
H,G,B |
Numerus Sheave: |
3,2,1 |
Utere: |
Elevatio Pulle |

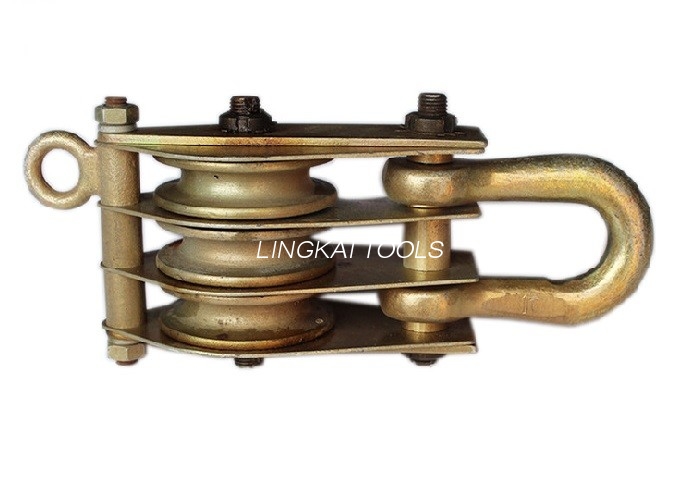

10KN Turris Erectio Tools Tres Rotae Steel Hoisting Tacle Clausus
Applicationem
Rapere Steel Filum Pulley Clausus est ad tollendum. Potest in singulis adhiberi, etiam ut truncus adhiberi potest.
Hoisting Tacle Characteres
1. Material: aluminium offensionis
2. Unius rota foramen hamo impressit. Duo vel tres manipuli clauduntur.
3. Leve pondus est utens aluminium mixturae.
usus
Turris Erectio Instrumenta Tres Rotae Steel Tackle Clausum, est polum et turrim, lineam constructionem, machinas levant, etc.
Features
Turris Erectio Tools Tres Rotae Steel Hoisting Tacle Clausus, punctum genus levans: hamus stilus(G), rotundus stilus(H), genus clevis(B)
Data Details
| Item Number | Model | Numerus orbiculum | Rated Load (kN) | orbiculum Diameter exterior Sheave Latitudo (mm) |
Funis Diameter (mm) | Pondus (kg) | Hoisting Type Point | ||
| 11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
| 11182 | QH1-2 | 2 | 10 | Φ80×28 | F6 | 2.8 | G | H | |
| 11183 | QH1-3 | 3 | 10 | Φ80×27 | F6 | 4.1 | G | H | |
| 11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
| 11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
| 11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
| 11201 | QH3-1K | 1 | 30 | Φ150×39 | F11 | 7 | G | H | B |
| 11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
| 11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
| 11211 | QH5-1K | 1 | 50 | Φ166×40 | F13 | 9.6 | G | H | B |
| 11212 | QH5-2 | 2 | 50 | Φ150×39 | F11 | 10.8 | G | H | |
| 11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
| 11221 | QH8-1K | 1 | 80 | Φ205×50 | F17 | 12.5 | G | H | B |
| 11222 | QH8-2 | 2 | 80 | Φ166×40 | F13 | 17 | G | H | |
| 11223 | QH8-3 | 3 | 80 | Φ150×39 | F11 | 17.5 | G | H | |
| 11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
| 11232 | QH10-2 | 2 | 100 | Φ166×40 | F13 | 18.5 | H | ||
| 11233 | QH10-3 | 3 | 100 | Φ150×39 | F11 | 20 | H | ||
| 11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
| 11242 | QH15-2 | 2 | 150 | Φ205×50 | F17 | 22 | H | ||
| 11243 | QH15-3 | 3 | 150 | Φ166×40 | F13 | 26 | H | ||
| 11244 | QH15-4 | 4 | 150 | Φ150×39 | F11 | 30 | H | ||
| 11248 | QH20-4 | 4 | 200 | Φ205×50 | F17 | 50 | H |
|
|
Ferrum Hoisting Clausus
